What Is Computer Vision?

Computer vision (CV) is a field of AI that enables computers to interpret and understand visual information — turning pixels into decisions. CV systems can classify objects, detect their locations, track movement across video, segment regions at the pixel level, and measure quantitative features from images.

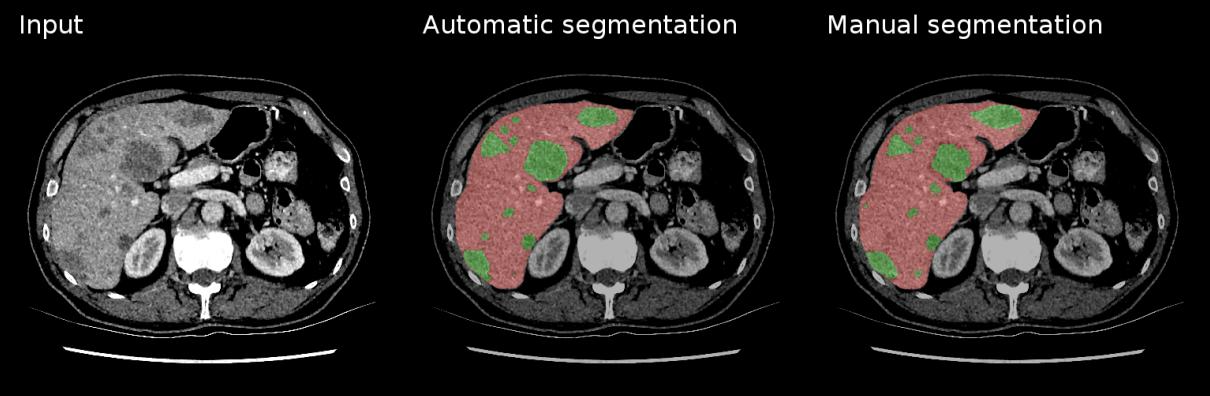

In healthcare, CV is transforming radiology, pathology, dermatology, ophthalmology, and surgery. A single hospital can produce millions of imaging studies per year — far more than radiologists can review with full attention. Modern CV systems now match or exceed human-level performance on specific tasks like detecting diabetic retinopathy from retinal scans or classifying skin lesions from dermoscopy images.

Digital Image Representation

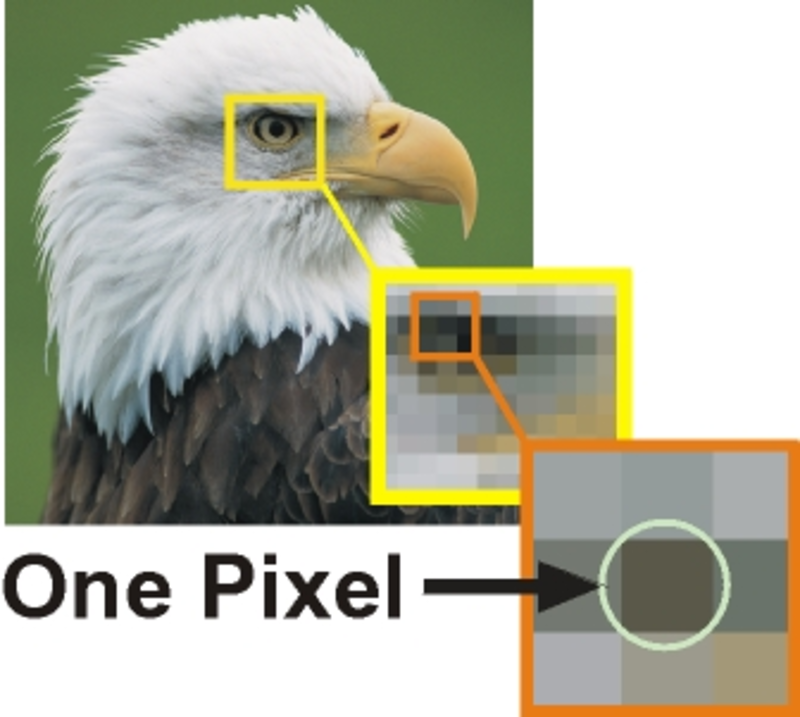

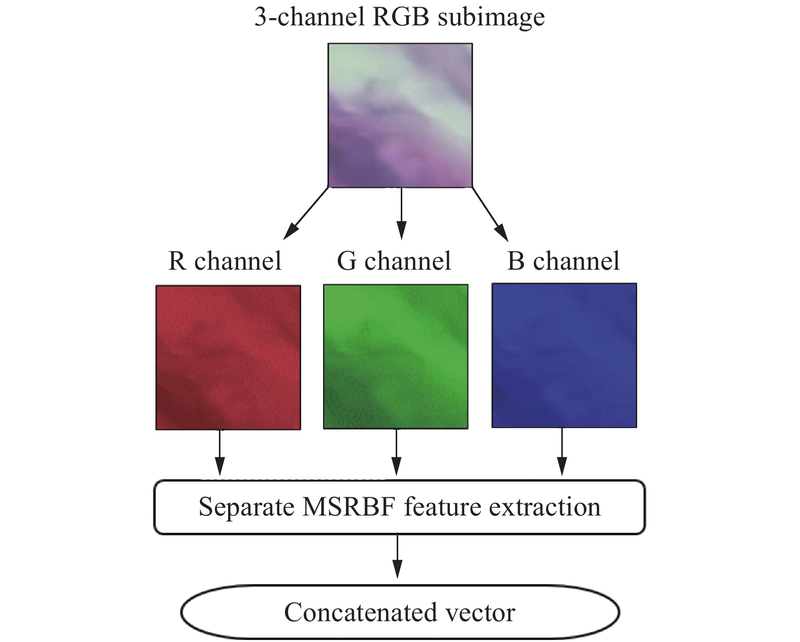

Before a computer can “see” an image, the image must be represented as numbers. An image is a grid of pixels — each pixel stores a color or intensity value at coordinates (x, y). Resolution is the number of pixels (width × height), and medical images range widely: dermoscopy (3000×4000) to ultrasound (640×480).

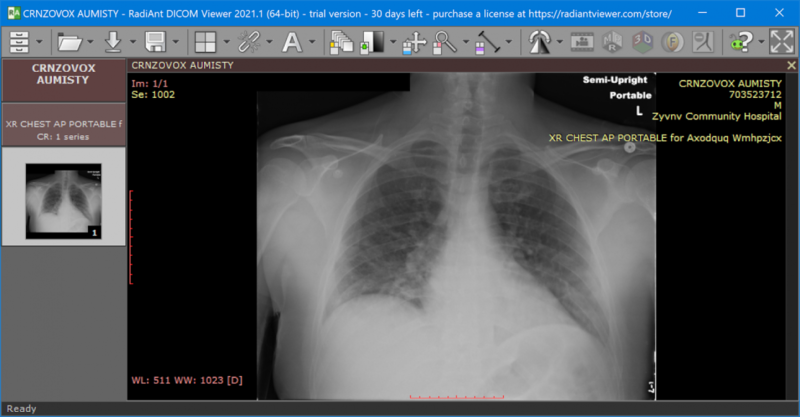

Medical Image Formats

Medical imaging uses specialized formats beyond standard JPEGs and PNGs.

The Python Imaging Stack

Key Python libraries for working with images:

CNNs in PyTorch

Quick CNN Recap

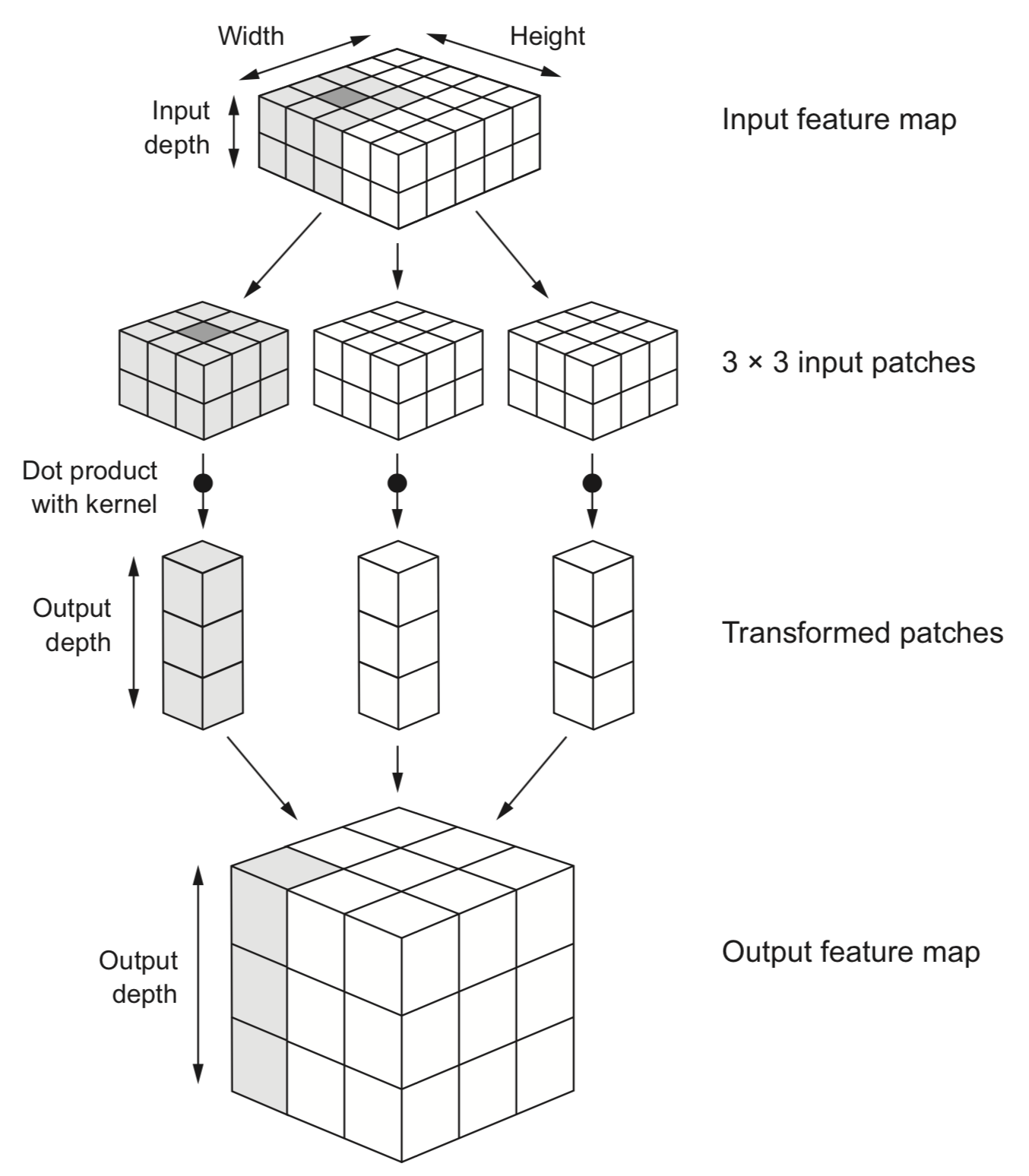

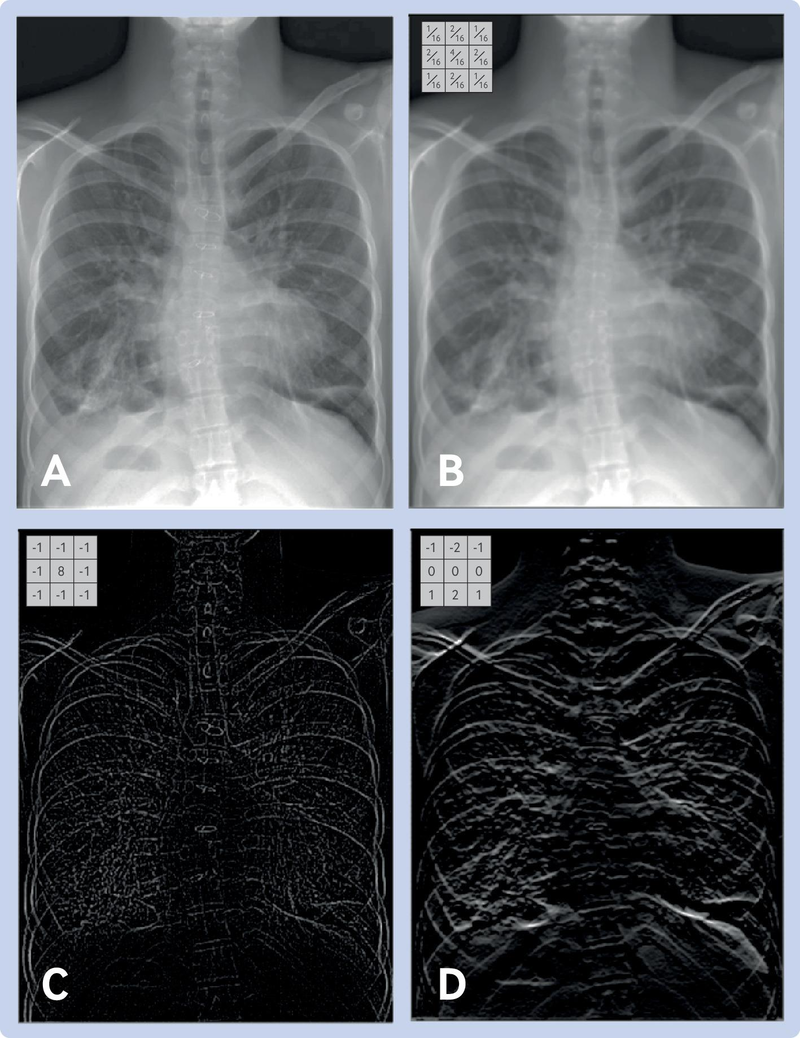

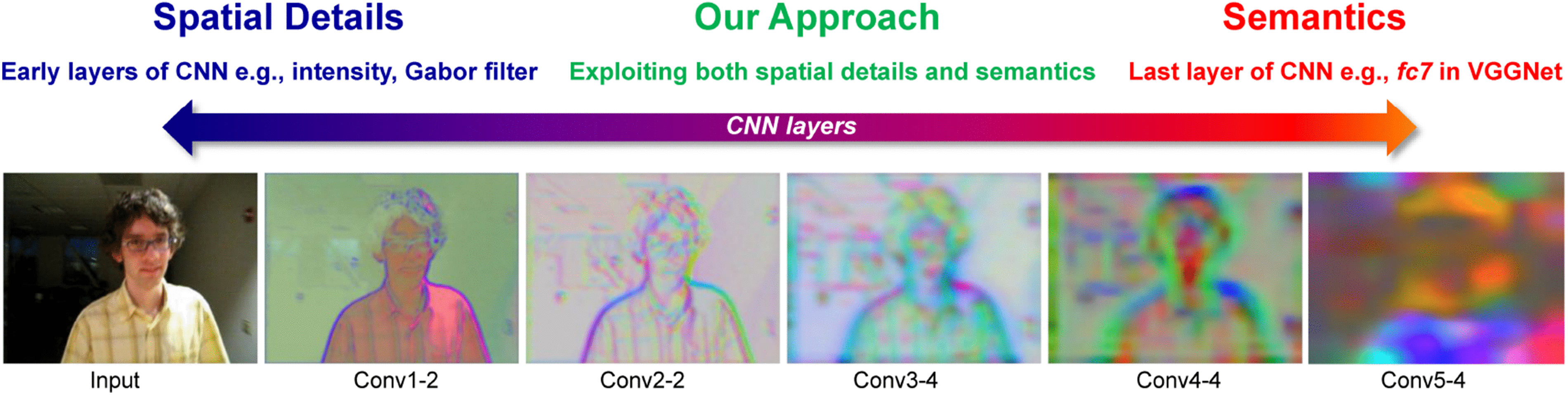

CNNs use small learned filters (e.g., 3×3) that slide across the image, sharing parameters at every position. This avoids the parameter explosion of fully connected layers and preserves spatial structure. Stacking convolutional layers builds a hierarchy of features — edges → textures → parts → objects:

PyTorch CNN Building Blocks

PyTorch provides all CNN components through torch.nn:

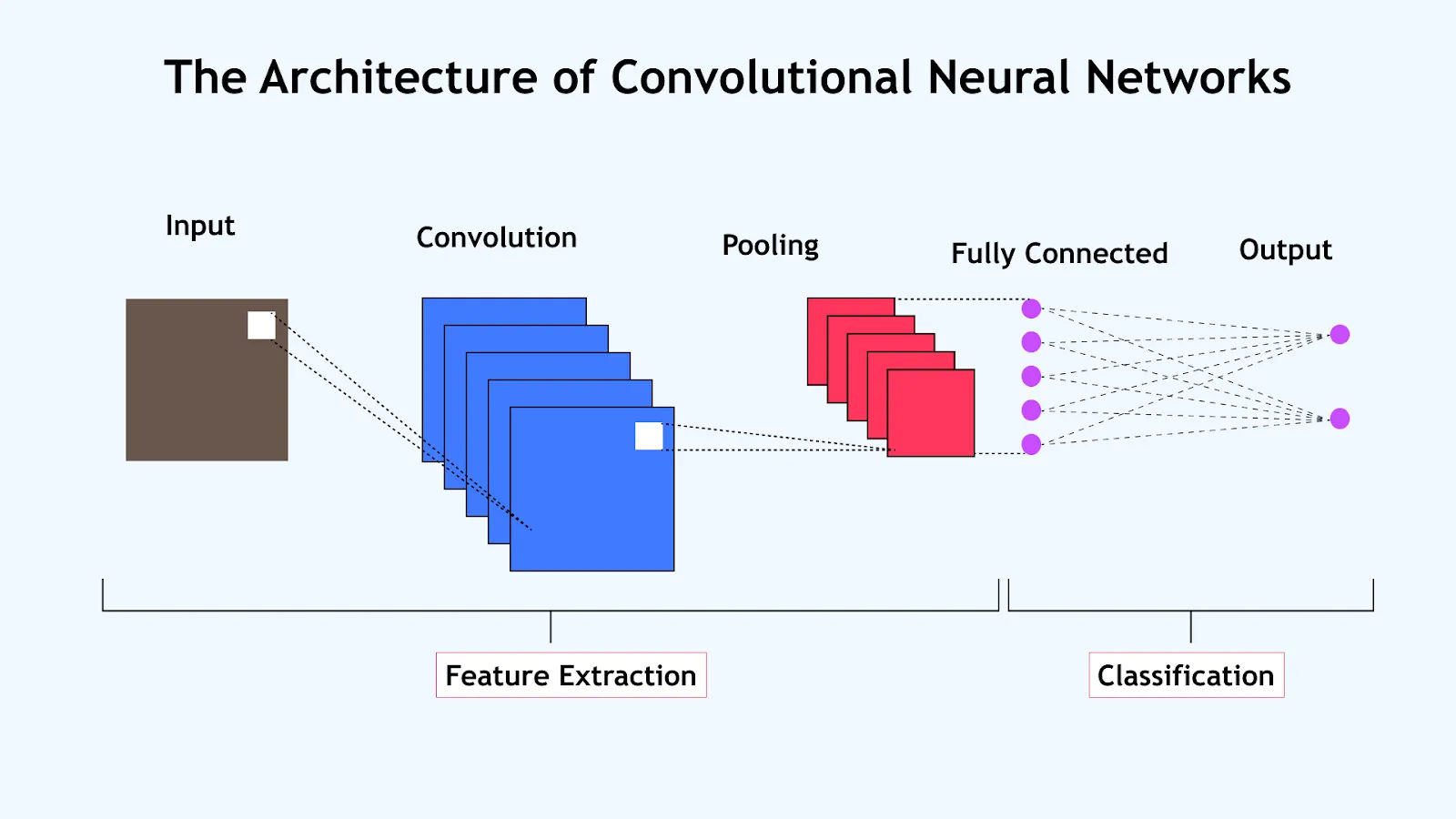

A typical CNN architecture follows this pattern:

INPUT → [CONV → BN → ReLU → POOL] × N → FLATTEN → LINEAR → OUTPUT

Reference Card: torch.nn CNN Layers

Layer Signature Purpose Key Parameters
Conv2d nn.Conv2d(in_ch, out_ch, kernel_size) Applies convolution filters stride=1, padding=0 (use padding=1 for 3×3 to preserve size)

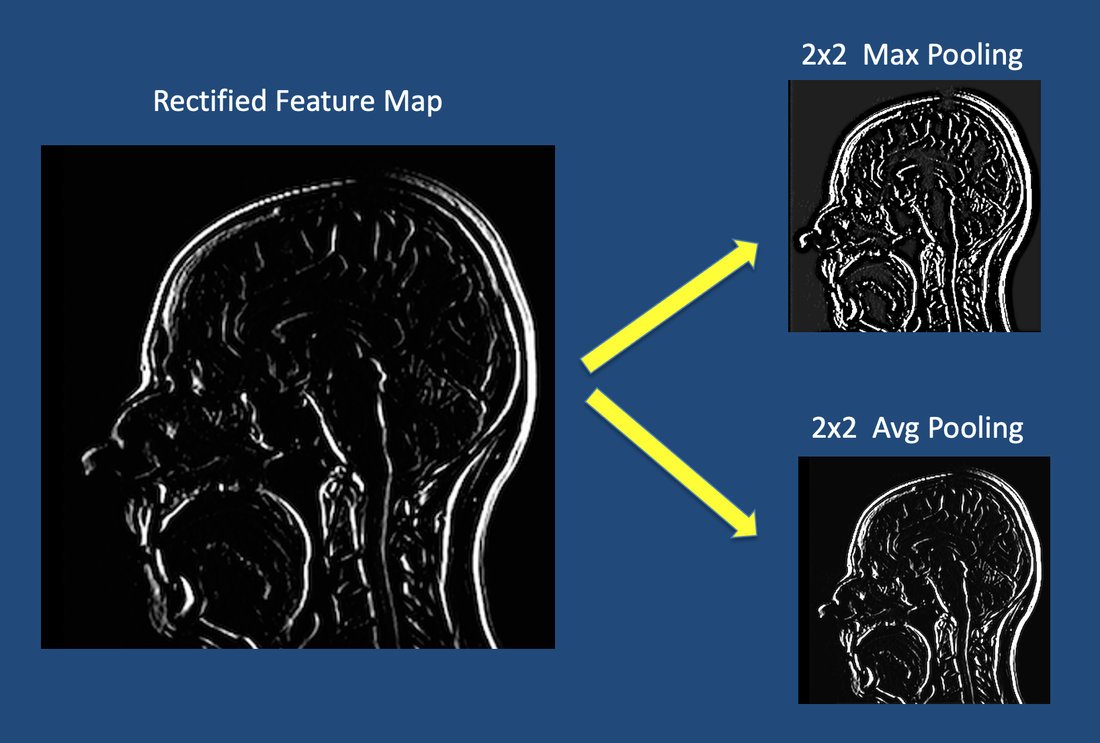

MaxPool2d nn.MaxPool2d(kernel_size) Downsamples spatial dimensions kernel_size=2, stride=2 halves H and W
BatchNorm2d nn.BatchNorm2d(num_features) Normalizes per-channel activations num_features = number of channels
ReLU nn.ReLU(inplace=True) Activation: max(0, x) — introduces nonlinearity inplace=True saves memory
Dropout2d nn.Dropout2d(p=0.25) Drops entire feature maps p = probability of zeroing a channel
Flatten nn.Flatten() Reshapes (N, C, H, W) → (N, C×H×W) Used before Linear layers
Linear nn.Linear(in_features, out_features) Fully connected layer For classification head

Code Snippet: A Simple CNN in PyTorch

import torch
import torch.nn as nn

class SimpleCNN(nn.Module):
    def __init__(self, num_classes=10):
        super().__init__()
        self.features = nn.Sequential(
            nn.Conv2d(3, 32, kernel_size=3, padding=1),
            nn.BatchNorm2d(32),
            nn.ReLU(inplace=True),
            nn.MaxPool2d(2),

            nn.Conv2d(32, 64, kernel_size=3, padding=1),
            nn.BatchNorm2d(64),
            nn.ReLU(inplace=True),
            nn.MaxPool2d(2),
        )
        self.classifier = nn.Sequential(
            nn.Flatten(),
            nn.Linear(64 * 56 * 56, 128),  # 224 / 2 / 2 = 56 after two MaxPool2d(2)
            nn.ReLU(inplace=True),
            nn.Dropout(0.5),
            nn.Linear(128, num_classes),
        )

    def forward(self, x):
        x = self.features(x)
        x = self.classifier(x)
        return x

model = SimpleCNN(num_classes=2)

The PyTorch Training Loop

Unlike Keras’ model.fit(), PyTorch gives you explicit control over every step of training. Each iteration through a batch follows five steps:

  1. Zero gradients (optimizer.zero_grad()) — clear accumulated gradients from the previous batch
  2. Forward pass (outputs = model(inputs)) — feed inputs through the model to get predictions
  3. Compute loss (loss = criterion(outputs, labels)) — measure how wrong the predictions are
  4. Backward pass (loss.backward()) — use backpropagation to compute the gradient for each weight — how much it contributed to the error
  5. Update weights (optimizer.step()) — the optimizer adjusts weights in the direction that reduces the loss

An epoch is one complete pass through the entire training dataset. The learning rate (lr) controls how large each weight update step is — too high and training is unstable, too low and it’s slow. For inference, call model.eval() (disables dropout/batchnorm training behavior) and wrap in with torch.no_grad():.

Code Snippet: Training Loop

device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
model = SimpleCNN(num_classes=2).to(device)
criterion = nn.CrossEntropyLoss()
optimizer = torch.optim.Adam(model.parameters(), lr=1e-3)  # Adam is a widely-used default

for epoch in range(10):                        # 10 passes through the training data
    model.train()                              # enable dropout/batchnorm training behavior
    running_loss = 0.0
    for inputs, labels in train_loader:
        inputs, labels = inputs.to(device), labels.to(device)

        optimizer.zero_grad()                  # 1. clear old gradients
        outputs = model(inputs)                # 2. forward pass
        loss = criterion(outputs, labels)      # 3. compute loss
        loss.backward()                        # 4. compute gradients (backpropagation)
        optimizer.step()                       # 5. update weights

        running_loss += loss.item()
    print(f"Epoch {epoch+1}, Loss: {running_loss/len(train_loader):.4f}")

Tensor Shape Conventions

PyTorch and Keras/TensorFlow arrange image tensors differently. In practice this means:

torchvision — The Computer Vision Toolkit

torchvision is PyTorch’s companion library for computer vision — well-tested, GPU-optimized transforms, datasets, and pre-trained models for classification, detection, and segmentation.

Transforms & Data Augmentation

torchvision.transforms provides composable image transformations. You build a pipeline by chaining operations with Compose:

Essential transforms (always used): Resize, ToTensor (scales [0, 255] → [0.0, 1.0]), Normalize, CenterCrop

Key augmentation transforms (training only — see full list in reference card below):

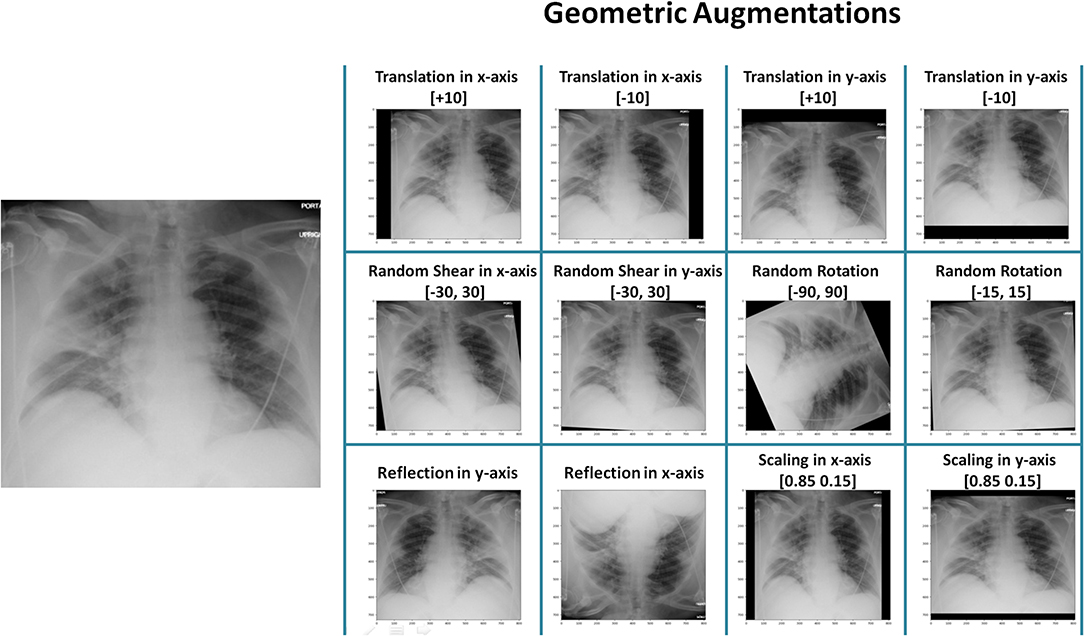

Why augmentation matters: Medical datasets are often small. Augmentation creates modified versions of each training image, helping the model generalize instead of memorizing.

For advanced augmentations (elastic deformations, grid distortion, CLAHE), see the albumentations library.

ImageNet Normalization

ImageNet is a large dataset of 1.2 million natural photos used to pre-train most vision models. When using these pre-trained models, normalize your images to match the statistics ImageNet was trained with:

normalize = transforms.Normalize(
    mean=[0.485, 0.456, 0.406],
    std=[0.229, 0.224, 0.225]
)

For grayscale medical images used with pre-trained RGB models, either:

Reference Card: torchvision.transforms

Category Transform Purpose Common Args
Pipeline Compose([t1, t2, ...]) Chain transforms in sequence List of transforms
Size Resize(size) Resize to target size (224, 224) or 256 (short edge)
Conversion ToTensor() PIL → tensor, scale to [0, 1] —
Normalize Normalize(mean, std) Per-channel normalization ImageNet: [0.485, 0.456, 0.406]
Crop CenterCrop(size) Crop from center 224
Flip RandomHorizontalFlip(p) Horizontal flip p=0.5
Rotate RandomRotation(degrees) Random rotation (-15, 15)
Scale+Crop RandomResizedCrop(size) Random crop + resize scale=(0.8, 1.0)
Color ColorJitter(b, c, s, h) Random color changes brightness=0.2, contrast=0.2
Blur GaussianBlur(kernel_size) Gaussian blur kernel_size=3
Erase RandomErasing(p) Erase random rectangle p=0.1

Code Snippet: Train vs Eval Transforms

from torchvision import transforms

# Training: augmentation + normalization
train_transform = transforms.Compose([
    transforms.Resize((256, 256)),
    transforms.RandomResizedCrop(224),
    transforms.RandomHorizontalFlip(),
    transforms.RandomRotation(10),
    transforms.ColorJitter(brightness=0.2, contrast=0.2),
    transforms.ToTensor(),
    transforms.Normalize([0.485, 0.456, 0.406], [0.229, 0.224, 0.225]),
])

# Evaluation: deterministic resize + normalize only
eval_transform = transforms.Compose([
    transforms.Resize((224, 224)),
    transforms.ToTensor(),
    transforms.Normalize([0.485, 0.456, 0.406], [0.229, 0.224, 0.225]),
])

Datasets & DataLoaders

torchvision provides two ways to load image data:

ImageFolder — the simplest approach for custom datasets. Expects a directory structure where each subdirectory is a class:

data/
├── normal/
│   ├── xray_001.png
│   ├── xray_002.png
│   └── ...
└── tuberculosis/
    ├── xray_101.png
    ├── xray_102.png
    └── ...

Custom Dataset — for more complex scenarios (DICOM files, multi-label, CSV-driven):

from torch.utils.data import Dataset

class ChestXrayDataset(Dataset):
    def __init__(self, image_paths, labels, transform=None):
        self.image_paths = image_paths
        self.labels = labels
        self.transform = transform

    def __len__(self):
        return len(self.image_paths)

    def __getitem__(self, idx):
        img = Image.open(self.image_paths[idx]).convert("RGB")
        label = self.labels[idx]
        if self.transform:
            img = self.transform(img)
        return img, label

DataLoader

DataLoader wraps a dataset and provides batching, shuffling, and parallel loading. It returns an iterable that yields (batch_inputs, batch_labels) tuples.

Key parameters:

Reference Card: torch.utils.data.DataLoader

Parameter Default Training Evaluation
batch_size 1 32 (or largest that fits GPU) Same or larger
shuffle False True False
num_workers 0 4 (tune to system) Same
pin_memory False True (with CUDA) True (with CUDA)
drop_last False True (for BatchNorm stability) False

Code Snippet: ImageFolder + DataLoader

from torchvision import transforms
from torchvision.datasets import ImageFolder
from torch.utils.data import DataLoader, random_split

# Create dataset with transforms
dataset = ImageFolder("data/chest_xrays", transform=train_transform)
print(f"Classes: {dataset.classes}")  # ['normal', 'tuberculosis']
print(f"Total images: {len(dataset)}")

# Split into train/val/test
train_size = int(0.7 * len(dataset))
val_size = int(0.15 * len(dataset))
test_size = len(dataset) - train_size - val_size
train_set, val_set, test_set = random_split(dataset, [train_size, val_size, test_size])

# Create DataLoaders
train_loader = DataLoader(train_set, batch_size=32, shuffle=True, num_workers=4)
val_loader = DataLoader(val_set, batch_size=32, shuffle=False, num_workers=4)

LIVE DEMO!

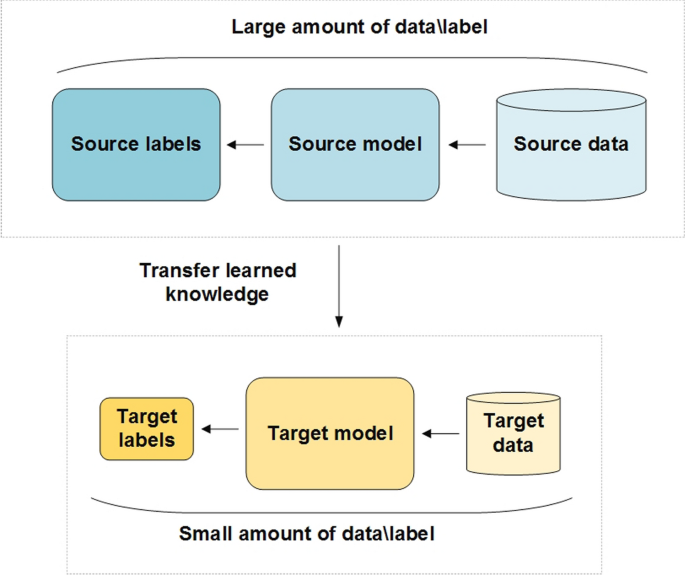

Transfer Learning & Pretrained Models

Transfer learning is the single most important practical technique in computer vision. Rather than training a CNN from scratch (which requires millions of images and days of GPU time), you start with a model that already understands visual features and adapt it to your specific task.

Why Transfer Learning?

ImageNet is a massive benchmark dataset of 1.2 million labeled natural photos across 1,000 everyday categories (dogs, cars, chairs, food, etc.). A model pre-trained on ImageNet has already learned a rich hierarchy of visual features:

These features transfer remarkably well to new domains — including medical imaging. A model that learned “edge” and “texture” features from natural photos can apply those same features to detect abnormalities in chest X-rays.

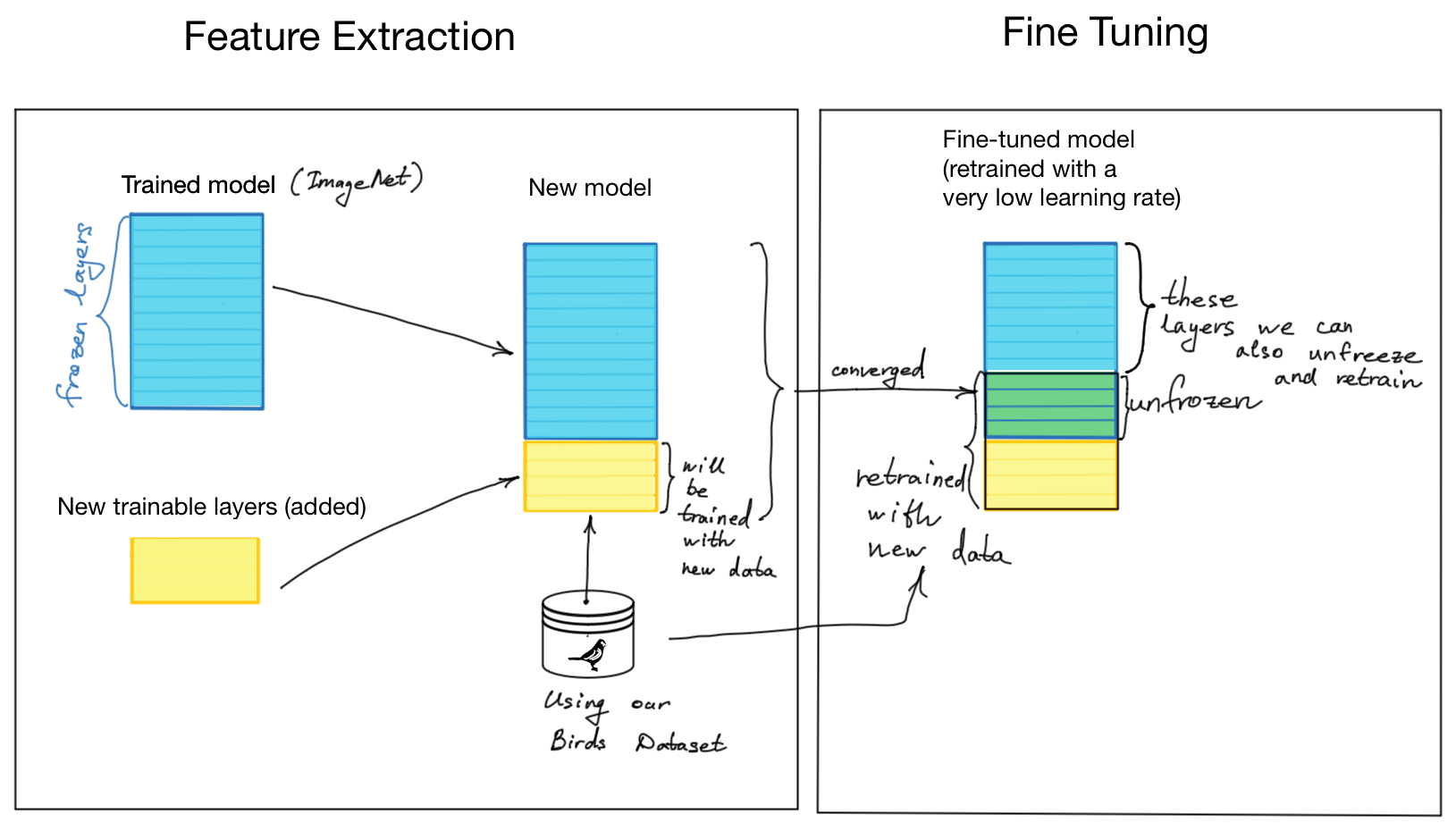

Two Approaches

A pre-trained model has two logical parts:

1. Feature Extraction — Freeze the pre-trained backbone, only train a new head:

2. Fine-Tuning — Start frozen, then unfreeze some or all backbone layers:

Pre-trained Models in torchvision

Pre-trained vision models are foundation models — the same concept from the LLM lectures. A large model is trained on massive data (ImageNet’s 1.2M images), learning general-purpose features, then adapted for specific downstream tasks via transfer learning. The pattern is identical whether the domain is language or vision: pre-train once at scale, fine-tune cheaply for your task.

torchvision.models provides pre-trained architectures with a consistent API. The modern way to load them uses the weights parameter:

Architecture Year Key Innovation Params torchvision name
Inception v3 2015 Parallel filters at multiple scales 24M inception_v3
ResNet-18/50 2015 Skip connections (shortcut paths that let information bypass layers, preventing vanishing gradients) → very deep networks 11M/25M resnet18, resnet50
MobileNetV2 2018 Depthwise separable convolutions — splits expensive operations into cheaper steps → mobile-friendly 3.4M mobilenet_v2
EfficientNet-B0 2019 Compound scaling — simultaneously scales network depth, width, and input resolution using a fixed ratio 5.3M efficientnet_b0
ConvNeXt-Tiny 2022 Modernized ConvNet matching ViT performance 28M convnext_tiny

Reference Card: torchvision.models

Category Method / Pattern Purpose Example
Load model models.resnet18(weights="DEFAULT") Load pre-trained ResNet-18 Returns nn.Module
Weights enum models.ResNet18_Weights.IMAGENET1K_V1 Specific weight version Explicit versioning
No pretrain models.resnet18(weights=None) Random initialization For training from scratch
Freeze model.requires_grad_(False) Freeze all parameters Or loop: param.requires_grad = False
Replace head model.fc = nn.Linear(512, num_classes) New classifier for ResNet .classifier for MobileNet/EfficientNet
List models models.list_models() See all available models Filter by keyword

For access to 1,000+ architectures beyond torchvision, the timm library (timm.create_model(name, pretrained=True, num_classes=N)) provides a uniform API with automatic head replacement.

Code Snippet: Transfer Learning with ResNet-18

import torchvision.models as models
import torch.nn as nn

# Load pretrained ResNet-18
model = models.resnet18(weights="DEFAULT")

# Freeze the backbone
for param in model.parameters():
    param.requires_grad = False

# Replace the classification head (512 → num_classes)
model.fc = nn.Sequential(
    nn.Linear(512, 128),
    nn.ReLU(),
    nn.Dropout(0.3),
    nn.Linear(128, 2),  # binary: normal vs tuberculosis
)

# Only the new head parameters will be trained
optimizer = torch.optim.Adam(model.fc.parameters(), lr=1e-3)

With timm, the same thing is even simpler:

import timm

model = timm.create_model("resnet18", pretrained=True, num_classes=2)

Evaluating Vision Models

Classification Metrics

The classification metrics from lecture 05 — accuracy, precision, recall, F1, confusion matrix — apply directly to image classification. The key difference in medical imaging is class imbalance: a chest X-ray dataset might be 90% normal, 10% abnormal, so a model that always predicts “normal” gets 90% accuracy but catches zero diseases.

Which metric matters depends on the clinical context:

Handling class imbalance: Use weighted loss (nn.CrossEntropyLoss(weight=...)), weighted sampling (WeightedRandomSampler), or threshold tuning (don’t always use 0.5).

Critical: patient-level splits. If the same patient’s images appear in both training and test sets, the model learns patient-specific features and test metrics will be misleadingly high. Always split by patient ID, not by image.

Code Snippet: Evaluation with torchmetrics

import torchmetrics

# Initialize metrics
accuracy = torchmetrics.Accuracy(task="binary").to(device)
f1 = torchmetrics.F1Score(task="binary").to(device)
confusion = torchmetrics.ConfusionMatrix(task="binary").to(device)

# Evaluation loop
model.eval()
with torch.no_grad():
    for inputs, labels in test_loader:
        inputs, labels = inputs.to(device), labels.to(device)
        outputs = model(inputs)
        preds = outputs.argmax(dim=1)
        accuracy.update(preds, labels)
        f1.update(preds, labels)
        confusion.update(preds, labels)

print(f"Accuracy: {accuracy.compute():.4f}")
print(f"F1: {f1.compute():.4f}")
print(f"Confusion Matrix:\n{confusion.compute()}")

LIVE DEMO!!

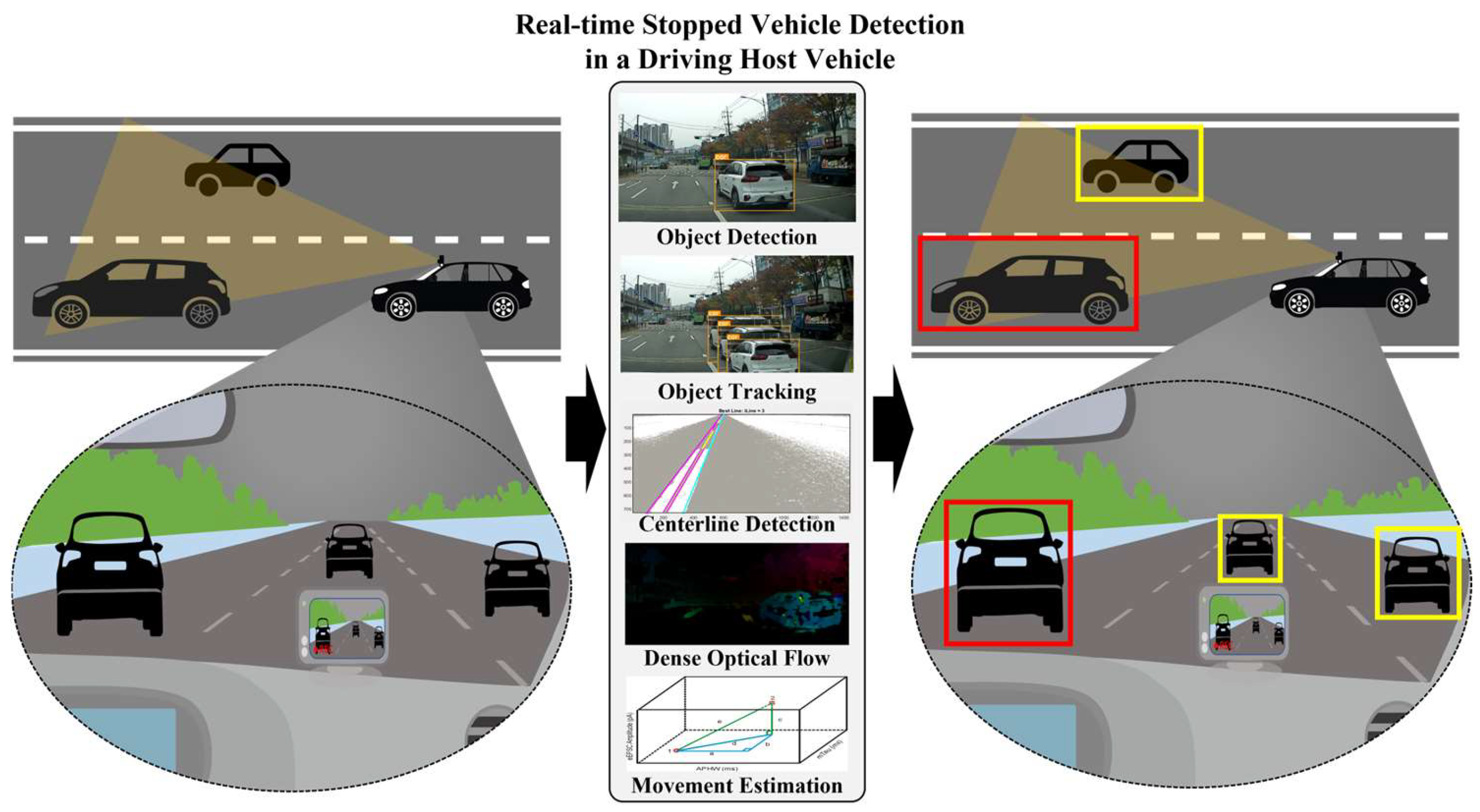

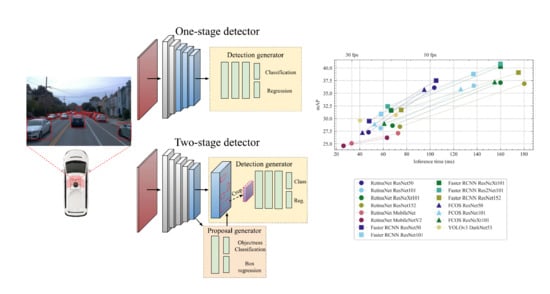

Object Detection

Computer Vision: Medical Applications

Detection and segmentation are the most impactful CV tasks in medicine:

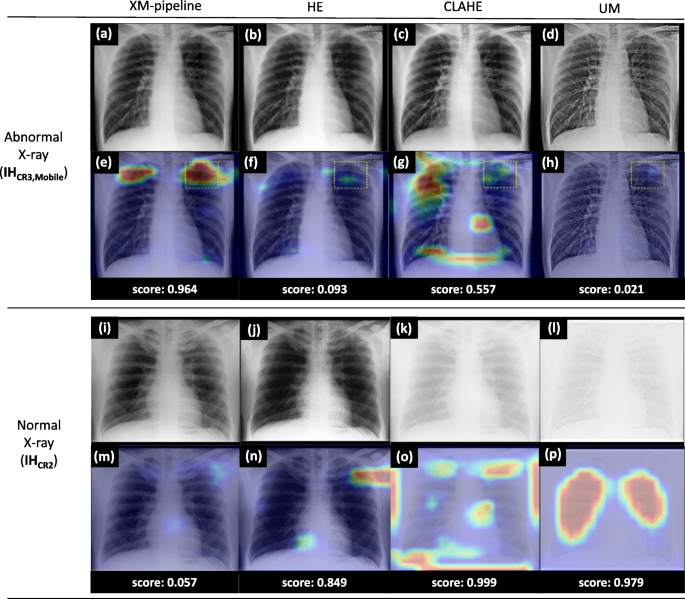

Image classification tells you what’s in an image. Object detection tells you what and where. It’s the difference between “this chest X-ray contains a nodule” and “there is a 12mm nodule in the right upper lobe.” In clinical settings, location matters — a radiologist needs to know not just that something is abnormal, but exactly where to look.

The output of a detection model is a set of bounding boxes, each with a class label and a confidence score.

Object Detection: Key Concepts

Detector Families

Approach Examples How It Works Tradeoff
Two-stage Faster R-CNN, Mask R-CNN 1. Generate region proposals 2. Classify each region More accurate, slower
One-stage YOLO, SSD, RetinaNet, FCOS Predict boxes + classes in one pass Faster, sometimes less accurate
Anchor-free FCOS, CenterNet Predict object centers + sizes directly (no predefined box templates) Simpler, competitive accuracy

Detection with torchvision

torchvision.models.detection provides pre-trained detection models. Most use a Feature Pyramid Network (FPN) on top of the backbone — FPN builds feature maps at multiple resolutions so the model can detect both small and large objects (a 3-pixel nodule and a full-lung opacity need different scales).

Reference Card: torchvision.models.detection

Model Function Backbone Speed Accuracy
Faster R-CNN fasterrcnn_resnet50_fpn(weights="DEFAULT") ResNet-50 + FPN Medium High
FCOS fcos_resnet50_fpn(weights="DEFAULT") ResNet-50 + FPN Medium High
RetinaNet retinanet_resnet50_fpn_v2(weights="DEFAULT") ResNet-50 + FPN Medium High
SSD ssd300_vgg16(weights="DEFAULT") VGG-16 Fast Moderate
SSDLite ssdlite320_mobilenet_v3_large(weights="DEFAULT") MobileNetV3 Very fast Moderate

Most pre-trained detection models are trained on COCO (Common Objects in Context) — a large-scale detection dataset with 80 everyday object classes like person, car, cat, and chair. For medical applications, you’d fine-tune on your own annotated dataset.

Code Snippet: Inference with Pretrained Faster R-CNN

import torchvision
from torchvision.models.detection import fasterrcnn_resnet50_fpn, FasterRCNN_ResNet50_FPN_Weights
from torchvision.utils import draw_bounding_boxes
from torchvision.transforms.functional import to_pil_image

# Load pretrained model
weights = FasterRCNN_ResNet50_FPN_Weights.DEFAULT
model = fasterrcnn_resnet50_fpn(weights=weights)
model.eval()

# Prepare image
preprocess = weights.transforms()
img_tensor = preprocess(img)

# Run inference
with torch.no_grad():
    predictions = model([img_tensor])[0]

# Filter by confidence
keep = predictions["scores"] > 0.7
boxes = predictions["boxes"][keep]
labels = predictions["labels"][keep]
scores = predictions["scores"][keep]

# Visualize
label_names = [weights.meta["categories"][l] for l in labels]
result = draw_bounding_boxes(
    (img_tensor * 255).byte(), boxes, label_names, width=3
)
to_pil_image(result).show()

Ultralytics YOLO

For the fastest path to object detection in practice, Ultralytics YOLO provides a batteries-included API:

from ultralytics import YOLO

model = YOLO("yolo11n.pt")  # load pretrained YOLO11-nano
results = model("chest_xray.png")
results[0].show()  # display with bounding boxes

# Fine-tune on custom dataset
model.train(data="my_dataset.yaml", epochs=50)

Image Segmentation

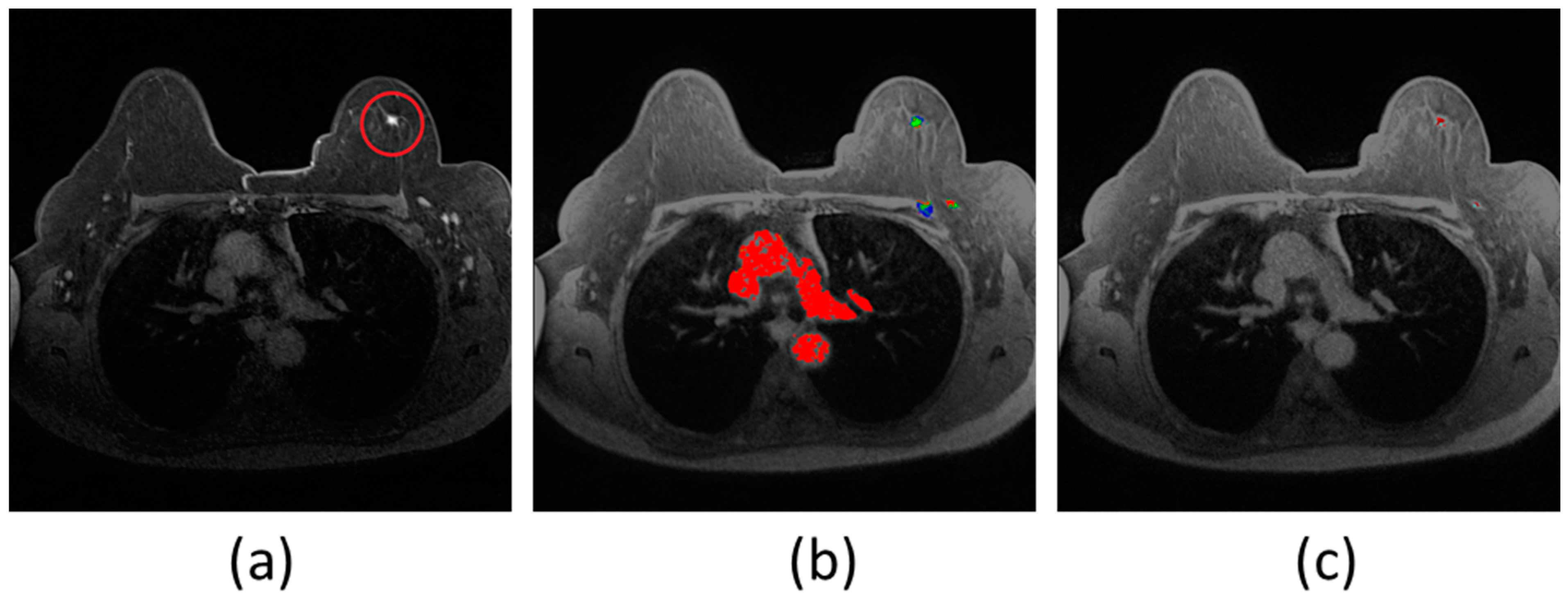

Segmentation is the most detailed form of visual understanding — it classifies every pixel in an image. Instead of one label per image (classification) or boxes around objects (detection), segmentation produces a mask that precisely outlines each region of interest. This matters clinically: a bounding box around a tumor tells you roughly where it is, but a segmentation mask tells you its exact shape, volume, and boundaries — critical for surgical planning and radiation therapy.

Types of Segmentation

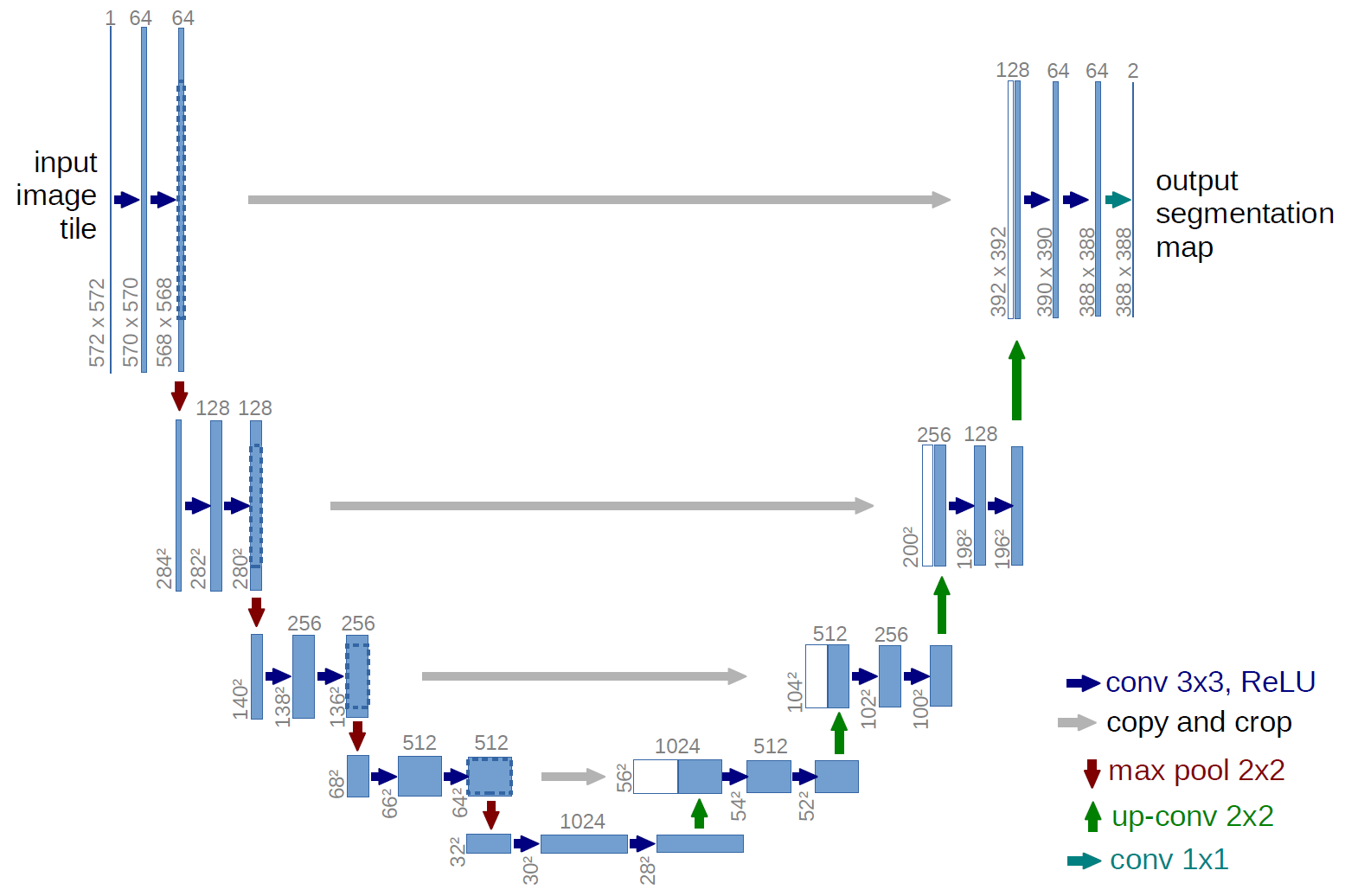

U-Net Architecture

U-Net (Ronneberger et al., 2015) was designed specifically for biomedical image segmentation and remains the dominant architecture for medical imaging. It works remarkably well even with very limited training data.

tl;dr — U-Net uses a U-shaped encoder-decoder CNN. The encoder extracts features at increasing granularity using convolutions and pooling. The decoder upsamples these features back to the original image size. Skip connections link encoder features to the decoder, combining “what” (semantic context) with “where” (spatial detail) for precise segmentation.

Key components:

  1. Encoder: Like a classification CNN — Conv → ReLU → MaxPool blocks with doubling filters (64 → 128 → 256 → 512). Reduces spatial resolution while extracting increasingly abstract features.
  2. Bottleneck: Deepest point with the most abstract features.
  3. Decoder: Mirrors the encoder — Upsample → Conv → ReLU blocks that recover spatial resolution.
  4. Skip Connections: The critical innovation — encoder feature maps are concatenated with decoder maps at matching resolutions, combining spatial detail with semantic context.
  5. Output Layer: 1×1 convolution → Sigmoid (binary) or Softmax (multi-class).

Loss Functions for Segmentation

Standard cross-entropy works but struggles with the extreme class imbalance common in medical segmentation (e.g., a small tumor in a large image). Specialized losses like Dice Loss optimize overlap directly, making them less sensitive to imbalance.

Reference Card: Segmentation Loss Functions

Loss Signature Best For Key Behavior
BCEWithLogitsLoss nn.BCEWithLogitsLoss() Binary segmentation, balanced classes Pixel-level cross-entropy with sigmoid built-in
CrossEntropyLoss nn.CrossEntropyLoss(weight=class_weights) Multi-class segmentation Pass weight tensor for class balancing
Dice Loss smp.losses.DiceLoss() Imbalanced classes (most medical tasks) Optimizes $$ 1 - (2
Jaccard Loss smp.losses.JaccardLoss() Similar to Dice Optimizes $$ 1 -
Focal Loss smp.losses.FocalLoss() Severe class imbalance Downweights easy pixels, γ parameter controls focus
BCE + Dice Sum both losses General-purpose Combines pixel-level and region-level optimization

Segmentation with Packages

Rather than implementing U-Net from scratch, established libraries provide pre-built architectures with pre-trained encoders.

segmentation_models_pytorch (smp)

The most popular segmentation library — provides U-Net, U-Net++, FPN, DeepLabV3+, and more, with any pre-trained encoder as the backbone.

Key parameters for smp.Unet():

Returns an nn.Module with .encoder, .decoder, .segmentation_head attributes.

Reference Card: smp Architectures

Architecture Function Best For
U-Net smp.Unet(...) General-purpose, medical imaging standard
U-Net++ smp.UnetPlusPlus(...) Nested skip connections, improved boundary accuracy
FPN smp.FPN(...) Multi-scale features, good for varied object sizes
DeepLabV3+ smp.DeepLabV3Plus(...) Strong at multi-scale context with dilated convolutions

torchvision.models.segmentation

torchvision also provides pre-trained segmentation models:

Model Function Architecture
DeepLabV3 deeplabv3_resnet50(weights="DEFAULT") Dilated convolutions (filters with spacing between elements to see a wider area without more parameters) + ResNet-50
FCN fcn_resnet50(weights="DEFAULT") Fully Convolutional Network (replaces all dense layers with convolutions so it works on any input size) + ResNet-50
LRASPP lraspp_mobilenet_v3_large(weights="DEFAULT") Lightweight mobile segmentation head + MobileNetV3 — fast, lower accuracy

For specialized medical imaging workflows (3D volumes, DICOM series, medical-specific transforms and architectures), see MONAI — a PyTorch framework built specifically for healthcare imaging that extends torchvision-style segmentation with 3D support, medical-specific losses, and clinical data loaders.

Code Snippet: U-Net with smp

import segmentation_models_pytorch as smp

# Create U-Net with pretrained ResNet-18 encoder
model = smp.Unet(
    encoder_name="resnet18",
    encoder_weights="imagenet",
    in_channels=1,         # grayscale chest X-ray
    classes=1,             # binary: lung vs background
    activation="sigmoid",
)

# Dice loss for training
loss_fn = smp.losses.DiceLoss(mode="binary")

# Training is the same PyTorch loop as classification
# but inputs are images and targets are masks
for images, masks in train_loader:
    optimizer.zero_grad()
    outputs = model(images)
    loss = loss_fn(outputs, masks)
    loss.backward()
    optimizer.step()

Advanced Topics & The Bigger Picture

Computer vision is evolving rapidly. Here’s what’s on the frontier — concepts to be aware of, not necessarily to implement today.

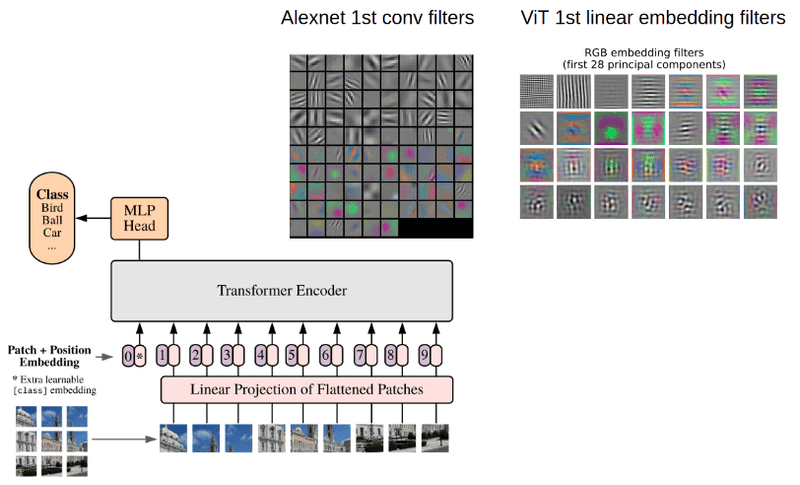

Vision Transformers (ViTs)

Transformers — the architecture behind GPT and BERT — have been adapted for images. A Vision Transformer splits an image into patches (e.g., 16×16 pixels) and processes them as a sequence of tokens with self-attention, excelling at capturing global relationships across the entire image.

import timm
model = timm.create_model("vit_base_patch16_224", pretrained=True, num_classes=2)

Foundation Models for Vision

Explainability in Medical CV

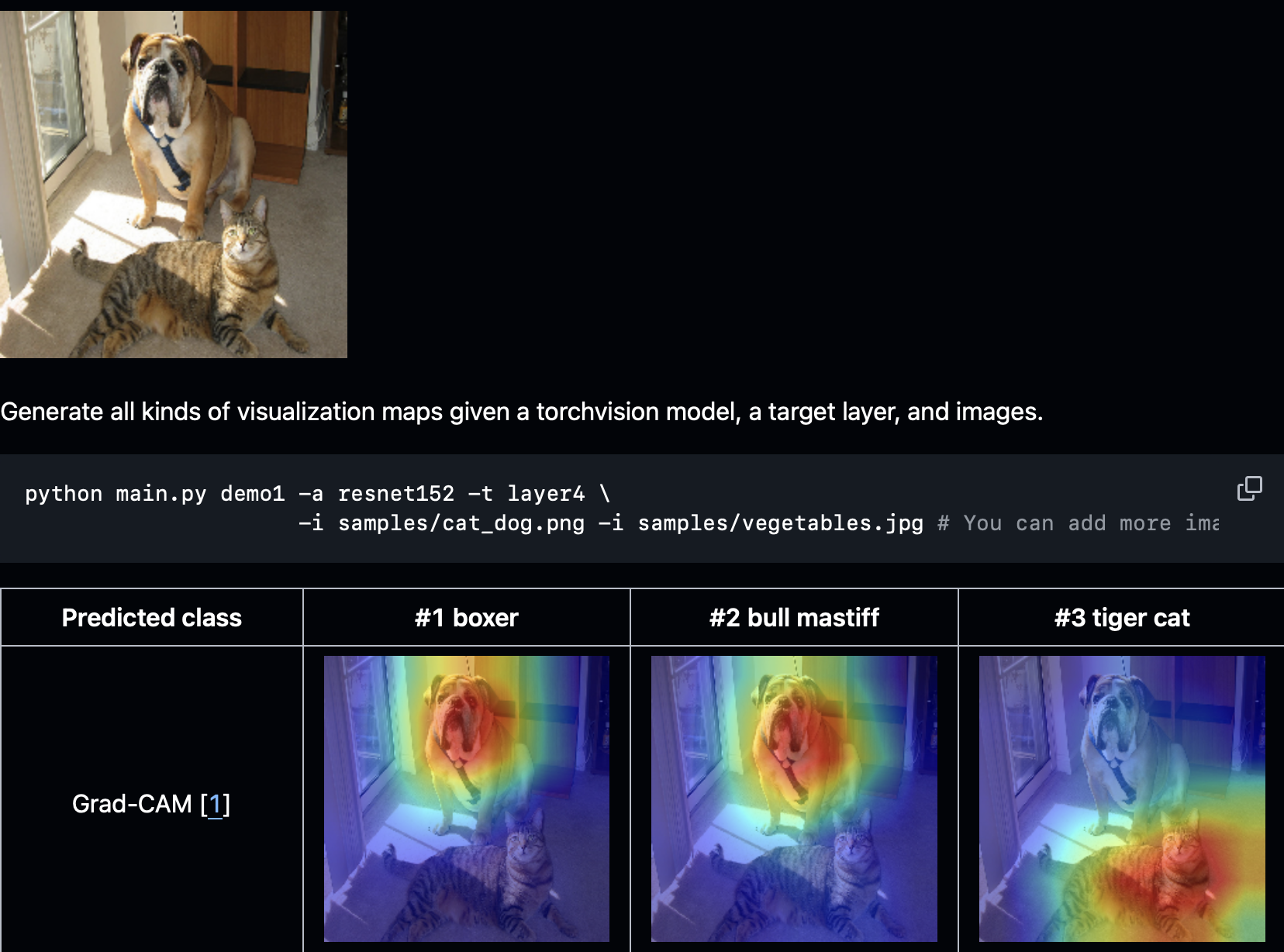

For clinical adoption, models must be interpretable. Grad-CAM uses gradients to produce heatmap overlays showing which image regions most influenced the prediction. Regulatory bodies (FDA, CE marking) increasingly require explainability, and clinicians won’t trust a model they can’t understand.

Self-Supervised Learning

Most medical images are unlabeled. Self-supervised methods learn visual features from unlabeled data by solving pretext tasks (predicting rotations, reconstructing masked patches), then fine-tune for clinical tasks with very few labels. Key approaches: contrastive learning (SimCLR, MoCo), masked image modeling (MAE), and DINOv2.

3D & Volumetric Imaging

Many medical modalities produce 3D volumes (CT, MRI). 3D U-Net and nn.Conv3d extend segmentation to volumes; TorchIO and MONAI provide specialized transforms and data loading for volumetric workflows.

LIVE DEMO!!!
