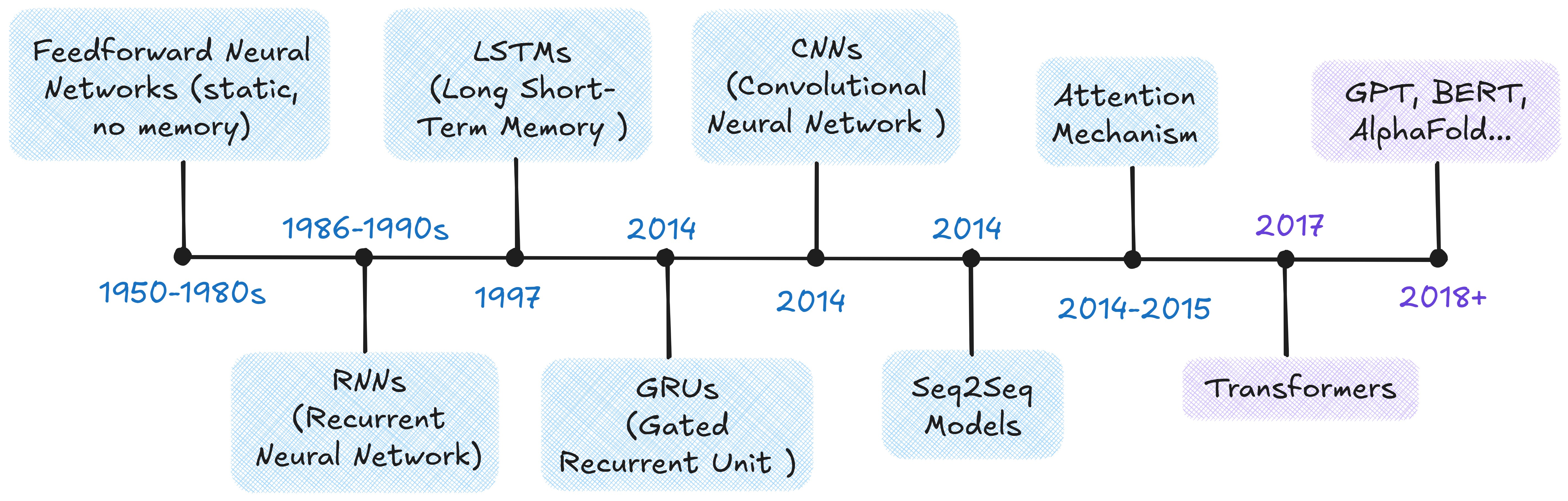

From Neural Networks to Transformers

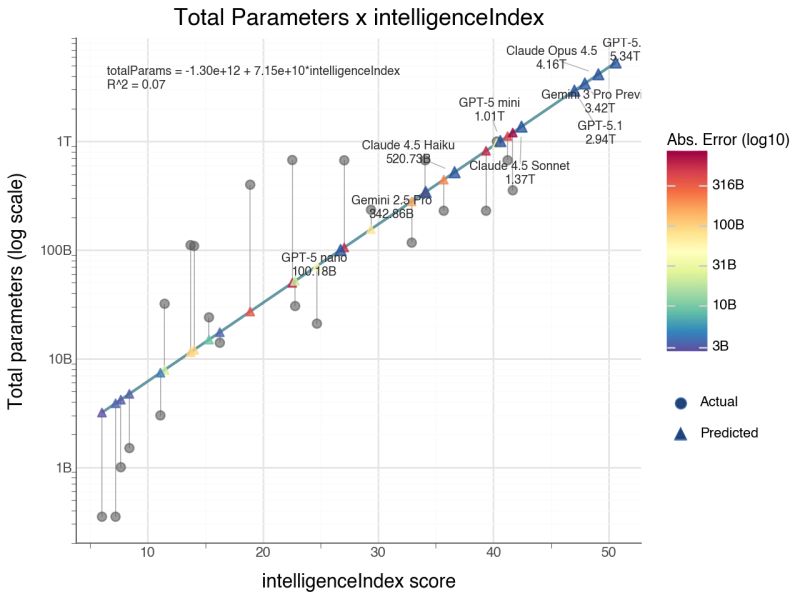

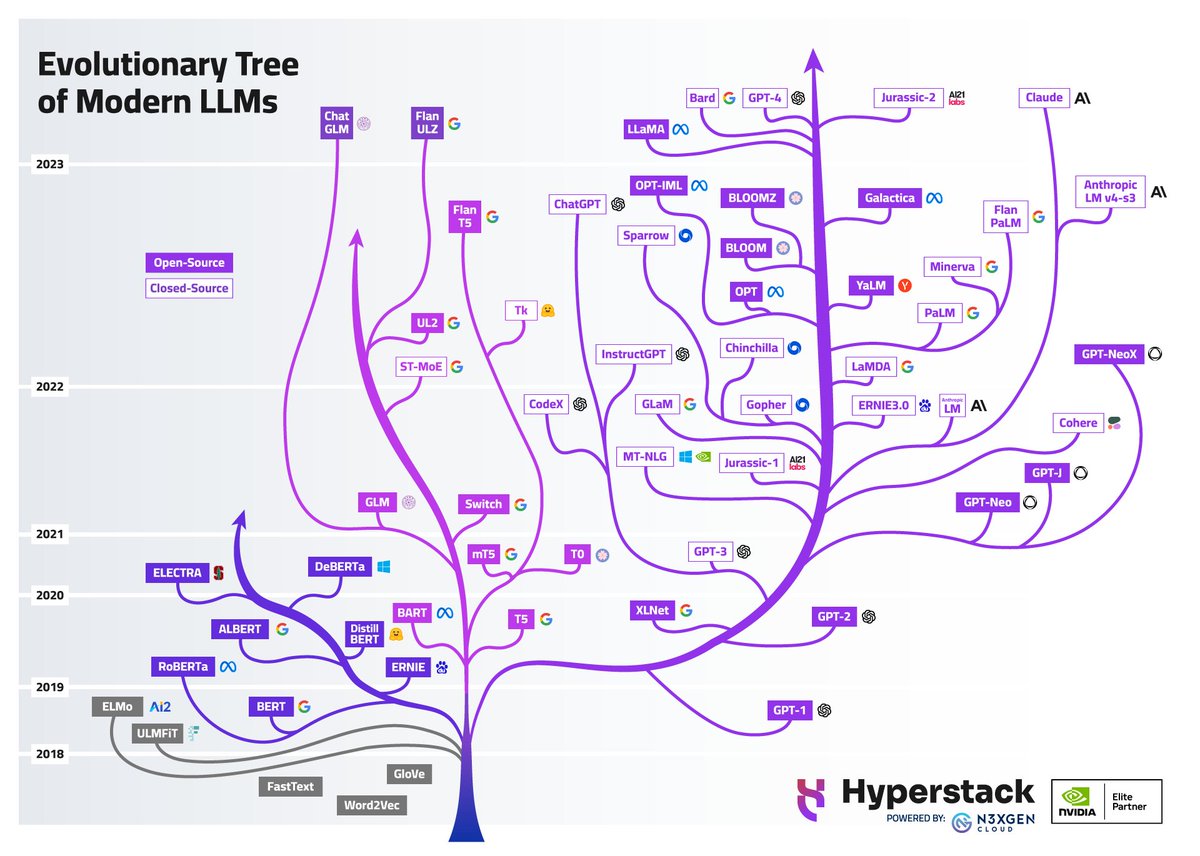

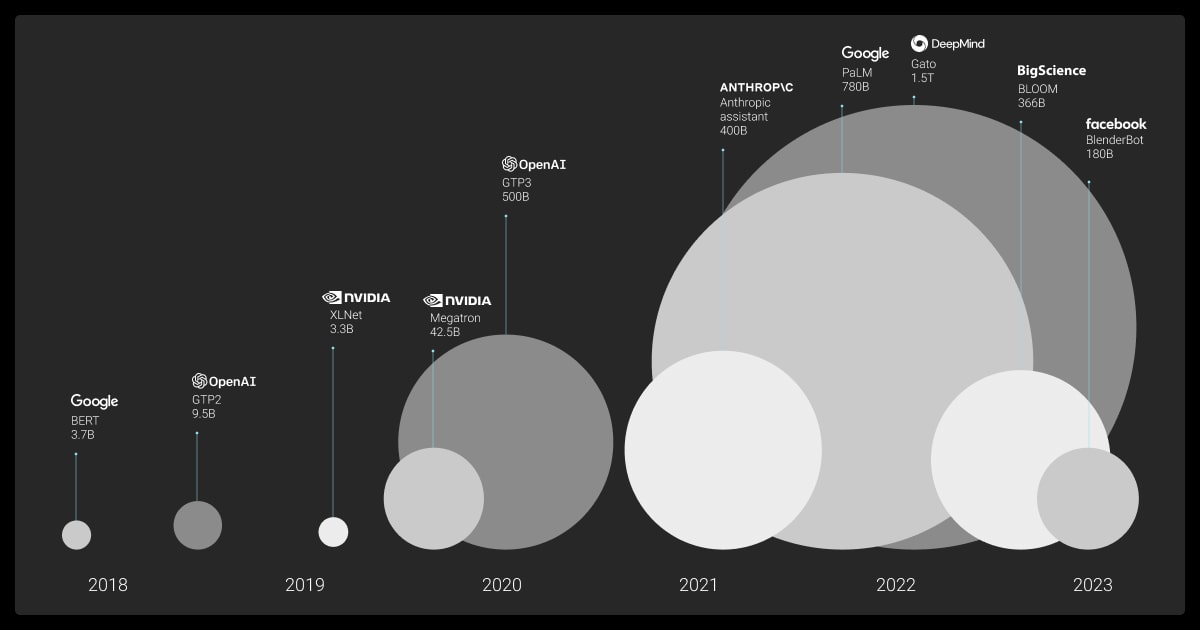

The Scale-Up Era (2018–)

Transformer Architecture

The Problem: Processing Everything at Once

Transformers process the full sequence in parallel, but that creates a new problem: how does any token know about any other token? The answer is attention.

The original transformer uses an encoder-decoder structure:

Modern LLMs have largely converged on a decoder-only design. It turns out you don’t need a separate “understanding” step. Instead of encode-then-decode, concatenate everything: context, question, partial answer. Then train a single decoder stack to predict the next token.

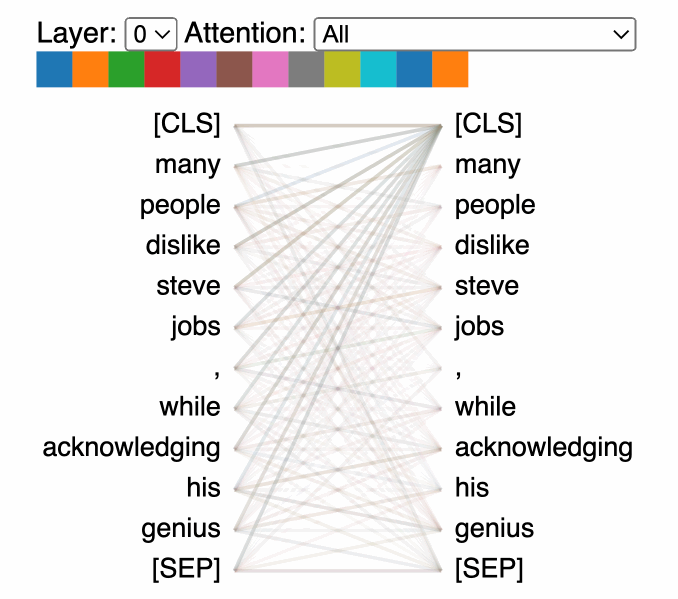

Self-Attention: Letting Tokens Talk

These ambiguities are trivial(ish) for humans but require the model to weigh every token’s relationship to every other token simultaneously. Self-attention does exactly that — each token computes how much it should attend to every other token, resolving these references in a single step.

How It Works: Query, Key, Value

For each token, the model creates three vectors from learned weight matrices:

For a 3-token input — “cat,” “sat,” “mat” — each embedding is multiplied by learned weight matrices $W_Q$, $W_K$, $W_V$ to produce Q, K, V vectors. From the perspective of “cat”:

  1. Score: Compute the dot product of $Q_\text{cat}$ against every token’s Key:
    • $Q_\text{cat} \cdot K_\text{cat} = 112$, $Q_\text{cat} \cdot K_\text{sat} = 96$, $Q_\text{cat} \cdot K_\text{mat} = 78$
  2. Scale: Divide by $\sqrt{d_k} = \sqrt{4} = 2$: scores become $56, 48, 39$
  3. Softmax (convert scores to probabilities summing to 1): $[0.73, 0.22, 0.05]$ — “cat” attends mostly to itself and somewhat to “sat”
  4. Weighted sum: $0.73 \cdot V_\text{cat} + 0.22 \cdot V_\text{sat} + 0.05 \cdot V_\text{mat}$ — a new representation of “cat” that blends information from the whole sequence

Repeat for every token. That’s self-attention.

Code Snippet: Simplified Attention

The function below implements the core attention calculation in pure numpy. It takes query, key, and value matrices, computes scaled dot-product scores between all pairs of tokens, normalizes them with softmax to get attention weights, then uses those weights to blend the value vectors into context-aware representations.

import numpy as np

def scaled_dot_product_attention(query, key, value):
    """Compute scaled dot-product attention (pure numpy)."""
    d_k = query.shape[-1]
    scores = query @ key.T / np.sqrt(d_k)
    weights = np.exp(scores) / np.exp(scores).sum(axis=-1, keepdims=True)  # softmax
    return weights @ value

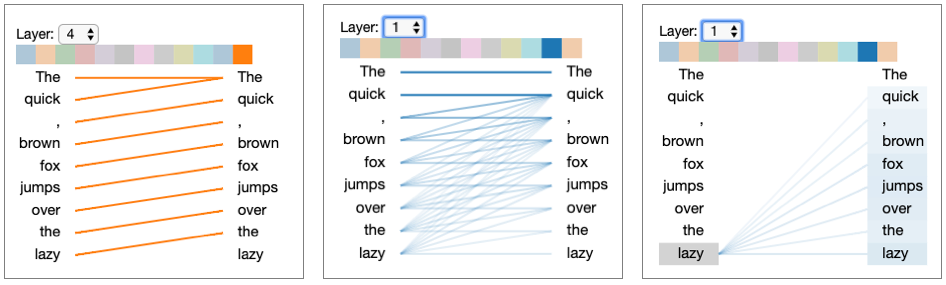

Multi-Head Attention

Language has many simultaneous relationships — syntax, semantics, entity references, temporal ordering. Multi-head attention runs multiple attention operations in parallel, each with its own learned Q/K/V matrices, so each head can specialize.

Putting It Together

How training works:

  1. The encoder reads the source sequence; the decoder generates the target one token at a time.
  2. Cross-attention bridges the two — in the architecture diagram, it’s the middle attention block in each decoder layer where the decoder’s queries attend to the encoder’s keys and values.

This is how the decoder “reads” the input: it asks “given what I’ve generated so far, what parts of the input should I focus on next?” Cross-entropy loss measures prediction error, gradients flow back, and the Adam optimizer updates weights.

Repeat over billions of examples…

Reference Card: Transformer Components

Component What Problem It Solves Details
Input Embedding Discrete tokens → continuous space Maps each token to a dense vector the network can process
Positional Encoding Attention is order-agnostic Injects position information so the model can distinguish word order
Multi-Head Attention Single attention can’t specialize Each head focuses on different aspects (syntax, semantics, entity references)
Cross-Attention Decoder needs to read the input Decoder queries attend to encoder keys/values — “what did the input say?”
Feed-Forward Network Attention blends but can’t transform Two-layer network (expand 4x, activate, contract) applied at each position
Layer Normalization Deep networks have unstable signals Rescale activations to mean=0, variance=1 within each layer
Residual Connections Deep networks have vanishing gradients Skip connections create gradient highways through the full stack
Masking Decoder can’t peek at future tokens Sets future positions to $-\infty$ before softmax

Beyond Text

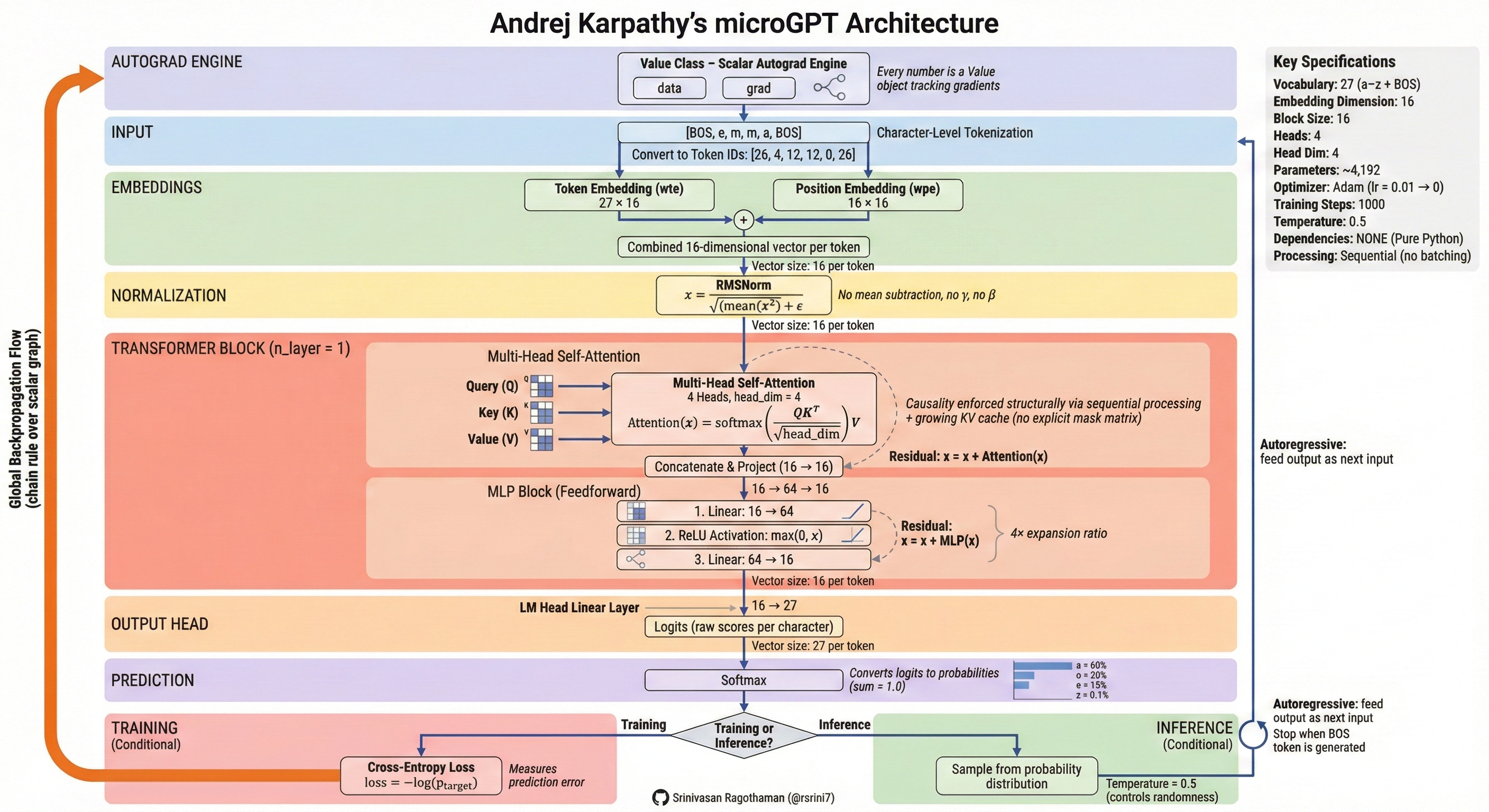

Building a GPT from Scratch

A working GPT in ~200 lines of Python — Karpathy’s microGPT.

Band What It Does
Autograd Engine (orange) Gradient-tracking machinery that powers backpropagation
Input Raw text → characters → integer token IDs
Embeddings Token embedding + position embedding (input embedding + positional encoding)
Normalization Layer norm (RMSNorm) — the “Add & Norm” pattern
Transformer Block (×n_layer) Multi-head self-attention (4 heads × 16 dims) → MLP (feed-forward) with residual connections
Output Head Linear projection from embedding dim → vocabulary size (27 chars)
Prediction Softmax → next-token probabilities
Training Cross-entropy loss (how wrong?) → backprop → Adam optimizer updates weights
Inference Sample from probability distribution; temperature controls randomness

Scaling to GPT-4 changes the tokenizer, the data (terabytes), and the compute (thousands of GPUs) — but the core algorithm is the same.

LIVE DEMO!

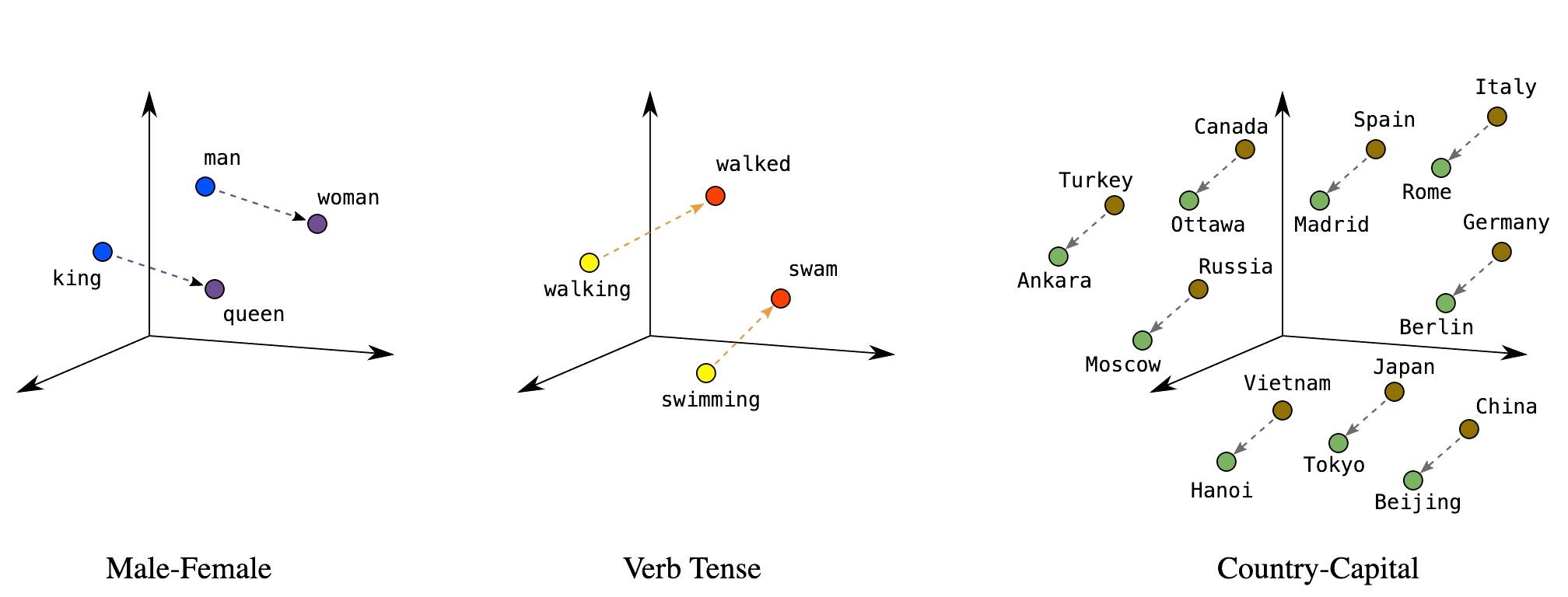

Embeddings

Embeddings map discrete tokens to continuous vectors where meaning is geometry. Similar items cluster together; relationships become directions. Every layer of a transformer produces embeddings — they’re the model’s internal representation of meaning. LLMs like GPT-4 produce rich, high-dimensional embeddings internally, but for practical tasks like search and comparison we typically use smaller, purpose-built models (like Sentence Transformers) because their embeddings are compact enough to store and compare at scale. These representations emerge through training in a self-organizing, unsupervised manner — no one labels which words should be near each other; the geometry arises from patterns in the data.

The idea generalizes beyond text — recommendation systems, drug interactions, diagnostic codes, and categorical variables can all be embedded.

Key applications: semantic search, document clustering, similarity matching, anomaly detection, classification features.

Reference Card: Common Embedding Methods

Method Type Key Characteristic

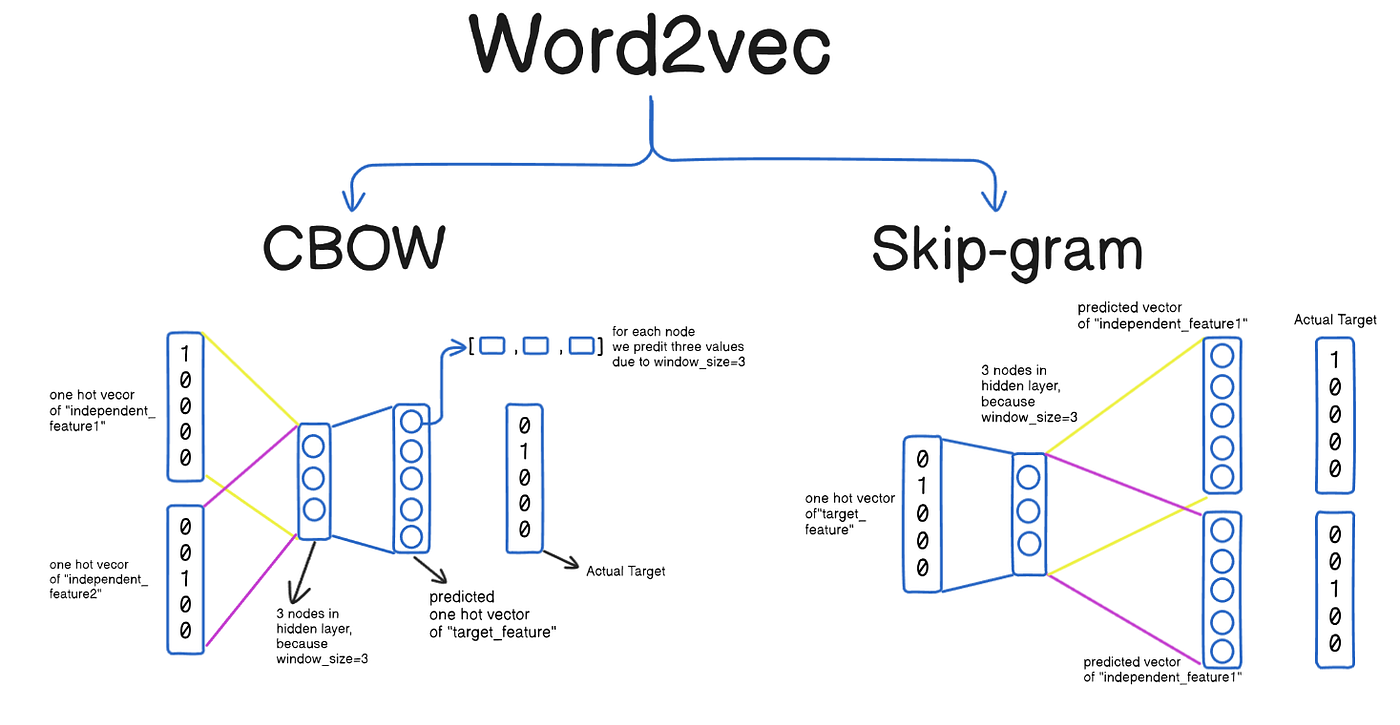

Word2Vec Word-level, static Learned from co-occurrence; fast to train
GloVe (Global Vectors) Word-level, static Factorizes co-occurrence matrix; similar to Word2Vec
FastText Subword-level, static Character n-grams handle misspellings and rare words
Sentence Transformers Sentence-level, contextual Same word gets different vectors by context; purpose-built for similarity

Sentence Transformers

Sentence Transformers produce fixed-size vectors for full sentences — contextualized embeddings where “bank” near “river” gets a different vector than “bank” near “money.”

Reference Card: SentenceTransformer

Component Details
Library sentence-transformers (pip install sentence-transformers)
Purpose Generate dense vector embeddings for sentences/paragraphs
Key Method model.encode(sentences) — returns numpy array of embeddings
Popular Models all-MiniLM-L6-v2 (fast), all-mpnet-base-v2 (accurate)
Output Fixed-size vectors (e.g., 384 or 768 dimensions)

Code Snippet: SentenceTransformer

from sentence_transformers import SentenceTransformer

model = SentenceTransformer('all-MiniLM-L6-v2')

sentences = [
    "Patient presents with chest pain",
    "Acute myocardial infarction suspected",
    "Scheduled for routine dental cleaning",
]

embeddings = model.encode(sentences)
print(embeddings.shape)  # (3, 384) — three sentences, 384 dimensions each

Cosine Similarity

Measures the angle between two vectors, ignoring magnitude.

Reference Card: cosine_similarity

Component Details
Function sklearn.metrics.pairwise.cosine_similarity()
Purpose Measure similarity between vectors (1 = identical, 0 = orthogonal, -1 = opposite)
Input Two arrays of shape (n_samples, n_features)
Use Case Compare embeddings to find semantically similar texts

Code Snippet: Computing and Comparing Embeddings

from sentence_transformers import SentenceTransformer
from sklearn.metrics.pairwise import cosine_similarity

model = SentenceTransformer('all-MiniLM-L6-v2')

# Clinical documents
docs = [
    "Patient presents with chest pain and shortness of breath",
    "Lab results show elevated troponin levels",
    "Patient reports headache and nausea",
]

embeddings = model.encode(docs)

# Find most similar to a query
query_emb = model.encode(["cardiac symptoms"])
similarities = cosine_similarity(query_emb, embeddings)[0]

for doc, sim in sorted(zip(docs, similarities), key=lambda x: -x[1]):
    print(f"{sim:.3f}  {doc}")

Vector Databases

Stores and indexes embedding vectors for fast similarity search at scale.

Reference Card: Vector Database Options

Database Type Strengths
ChromaDB In-memory/persistent Simple API, good for prototyping
FAISS (Facebook AI Similarity Search) In-memory Fast, scalable, from Meta AI
Pinecone Cloud service Managed, production-ready
Weaviate Self-hosted/cloud Full-text + vector search
pgvector PostgreSQL extension Integrate with existing DB

Code Snippet: Vector Database with ChromaDB

import chromadb

client = chromadb.Client()
collection = client.create_collection("clinical_notes")

# Add documents (ChromaDB handles embedding automatically)
collection.add(
    documents=["Patient has type 2 diabetes", "Elevated troponin, chest pain"],
    ids=["note1", "note2"]
)

# Query by semantic similarity
results = collection.query(query_texts=["cardiac symptoms"], n_results=1)
print(results["documents"])  # [['Elevated troponin, chest pain']]

General Models → Getting the Details Right

LLMs are general-purpose — the same model translates, summarizes, classifies, writes code, and reasons. No custom pipeline needed per task. Open-source and open-weight models (Llama, Mistral, DeepSeek) now match or exceed what was state-of-the-art just a year ago — models that would cost millions to train from scratch are freely available as starting points. The practical question isn’t “how do I build a model?” but “how do I get an existing model to do what I need?”

Two approaches to go from a general model to your specific task:

Approach When to Use Effort Cost
Prompting (recommended default) Most tasks; fast iteration Minutes to test Lower
Fine-tuning (specialized cases) Specialized vocabulary, domain patterns Days–weeks Higher

Fine-Tuning

Continue training a pre-trained model on your domain data. Save it for specialized vocabulary or patterns (e.g., pathology report terminology) where you have hundreds+ labeled examples.

Reference Card: Trainer

Component Details
Signature Trainer(model, args, train_dataset, eval_dataset=None, data_collator=None)
Purpose High-level training loop that handles batching, optimization, logging, and checkpointing for fine-tuning pre-trained models.
Parameters • model: A pre-trained AutoModel instance (e.g., GPT2LMHeadModel).
• args (TrainingArguments): Configures output dir, epochs, batch size, learning rate, etc.
• train_dataset (Dataset): Tokenized training data in Hugging Face Dataset format.
• eval_dataset (Dataset, optional): Evaluation data for metrics during training.
Returns TrainOutput with training loss and metrics. Call trainer.train() to start.

Code Snippet: Fine-Tuning a GPT

from transformers import GPT2Tokenizer, GPT2LMHeadModel, Trainer, TrainingArguments
from datasets import Dataset

tokenizer = GPT2Tokenizer.from_pretrained('gpt2')
tokenizer.pad_token = tokenizer.eos_token
model = GPT2LMHeadModel.from_pretrained('gpt2')

# Tokenize and wrap in a Dataset (Trainer requires this format)
texts = ["Clinical notes about diabetes management", "More clinical text about hypertension"]
tokenized = tokenizer(texts, padding=True, truncation=True, return_tensors="pt")
tokenized["labels"] = tokenized["input_ids"].clone()
dataset = Dataset.from_dict({k: v.tolist() for k, v in tokenized.items()})

training_args = TrainingArguments(
    output_dir="./results",
    num_train_epochs=3,
    per_device_train_batch_size=4,
)

trainer = Trainer(model=model, args=training_args, train_dataset=dataset)
trainer.train()

Making Fine-Tuning Practical

Full fine-tuning updates every weight in the model — expensive and often unnecessary. Several strategies reduce cost and tailor the model to your domain:

In practice, most teams start with prompting, move to head replacement or LoRA if needed, and rarely do full fine-tuning unless they have substantial compute and data.

Hallucination

No general solution. The model confidently generates plausible-sounding text that may be completely wrong.

Mitigations (none foolproof):

LIVE DEMO!!

Prompt Engineering

“Programming” the model without retraining. Every prompt has the same building blocks:

[ROLE] Who the model should act as [TASK] What needs to be done [FORMAT] How to structure the output [CONSTRAINTS] Boundaries and requirements [EXAMPLES] Concrete input/output pairs

Reference Card: Prompting Techniques

Technique Description When to Use
Zero-shot Task description only, no examples Simple, well-defined tasks
One-shot Single example provided When pattern is clear from one case
Few-shot 2–5 examples provided Complex patterns, structured output
Chain-of-thought Ask model to show reasoning step-by-step before answering Multi-step reasoning tasks (expanded in Lecture 8)
Explicit structure Use XML tags or numbered steps to separate prompt components Complex prompts with multiple data sources
Grounding Ask the model to extract relevant quotes before answering Clinical decision support, traceability required
Self-verification Ask the model to check its own output before finishing Structured extraction, high-stakes tasks
Document ordering Place documents at top, questions at bottom Multi-document analysis (20K+ tokens)

Zero-Shot, One-Shot, and Few-Shot Learning

The more structured the task, the more examples help.

Example: Few-Shot Prompting

Extract diagnoses from clinical notes.

Example 1: Note: “Patient presents with elevated blood glucose and polyuria.” Diagnosis: Type 2 Diabetes Mellitus

Example 2: Note: “Chest pain radiating to left arm, elevated troponin.” Diagnosis: Acute Myocardial Infarction

Now extract the diagnosis: Note: “Patient has persistent cough, fever, and infiltrates on chest X-ray.” Diagnosis:

System Prompts

Sets the model’s persona, constraints, and default behavior for the entire conversation. System prompts are sent as a separate message role that persists across the conversation.

Example: System Prompt

You are a clinical documentation assistant.

Rules:

  • Use ICD-10 codes when identifying diagnoses
  • Flag any findings that need follow-up
  • Never provide treatment recommendations

Explicit Structure and Grounding

For complex prompts with multiple inputs, use XML tags or clear section markers to separate components. This reduces errors when the model needs to handle instructions, data, and formatting rules simultaneously.

Ask the model to extract and cite relevant quotes from the source material before generating its answer — this “grounds” the response in evidence and reduces hallucination.

Example: Structured Prompt with Grounding

<instructions> Review the clinical note below. First, extract key quotes that support your assessment. Then provide a structured diagnosis. </instructions>

<clinical_note> 65-year-old male with chest pain, ST elevation in leads V1-V4, troponin elevated at 2.5 ng/mL. Cardiology consulted for emergent catheterization. </clinical_note>

<output_format>

  1. Supporting quotes from the note
  2. Primary diagnosis with ICD-10 code
  3. Confidence level (high/medium/low)

</output_format>

Self-Verification and Chain-of-Thought

Ask the model to reason step-by-step before answering (chain-of-thought), or to check its own output before finishing (self-verification). Both improve accuracy on multi-step reasoning tasks.

Example: Chain-of-Thought with Self-Verification

Review this patient’s medication list for interactions. Think through each pair step by step. After completing your analysis, verify that you checked every combination and didn’t miss any.

Medications: metformin, lisinopril, warfarin, aspirin, omeprazole

Prompt Chaining

Break complex tasks into sequential steps where each prompt’s output feeds into the next.

Step 1: Extract medications from clinical note → list Step 2: For each medication, check for interactions → table Step 3: Summarize findings for clinician → report

This is the foundation of agentic workflows (Lecture 8).

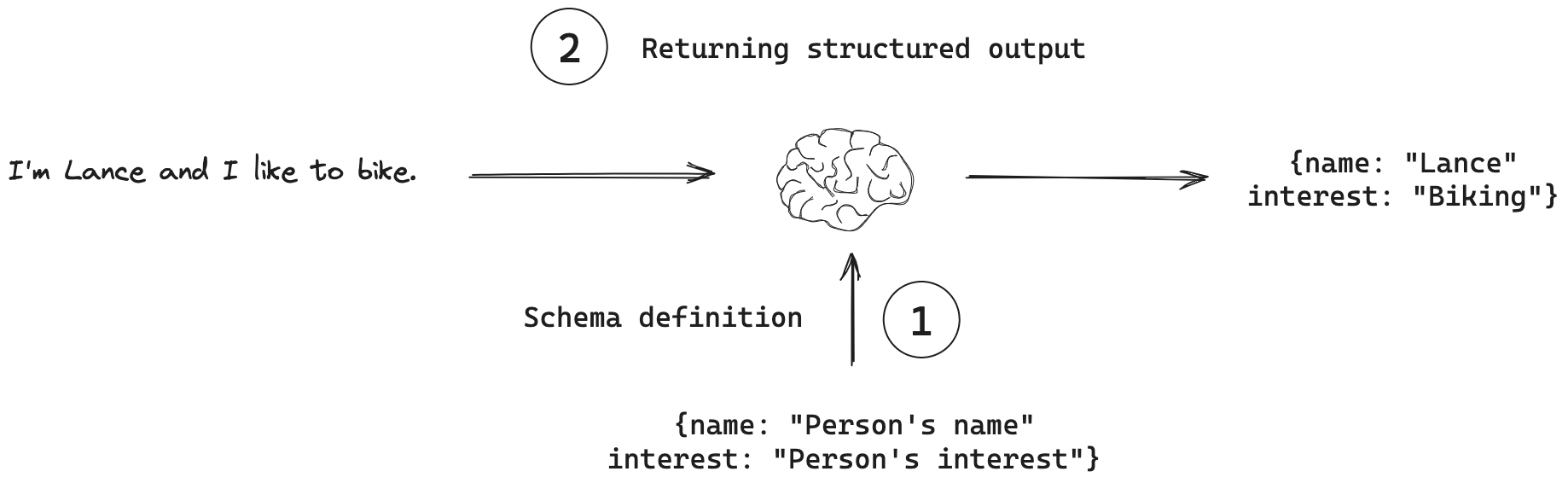

Structured Responses

Machine-readable output (JSON, XML, table) instead of free text. Specify the schema in the prompt, validate programmatically.

Reference Card: Structured Output Prompting

Component Details
Schema Definition Explicitly define JSON structure in prompt
Required Fields List all mandatory fields with types
Validation Parse and validate output programmatically
Fallback Handle parsing errors gracefully

Example: Schema-Based Prompt

Extract the following information from the clinical note and return it as JSON:

{
  "diagnosis": "<primary diagnosis>",
  "confidence": "<0.0-1.0>",
  "icd_code": "<ICD-10 code if known>",
  "reasoning": "<brief explanation>"
}

Clinical Note: “65-year-old male with chest pain, ST elevation in leads V1-V4, troponin elevated at 2.5 ng/mL. Cardiology consulted for emergent catheterization.”

LLM API Integration

API Access Patterns

Code Snippet: OpenAI API

from openai import OpenAI

client = OpenAI()  # Uses OPENAI_API_KEY env var

response = client.chat.completions.create(
    model="gpt-4o-mini",
    messages=[
        {"role": "system", "content": "You are a helpful medical assistant."},
        {"role": "user", "content": "Summarize: Patient presents with chest pain and elevated troponin."}
    ],
    max_tokens=150
)

print(response.choices[0].message.content)

Code Snippet: OpenRouter (OpenAI-Compatible)

Same openai SDK, different base_url — access models from every major provider.

import os
from openai import OpenAI

client = OpenAI(
    base_url="https://openrouter.ai/api/v1",
    api_key=os.environ["OPENROUTER_API_KEY"],
)

response = client.chat.completions.create(
    model="anthropic/claude-sonnet-4",  # or "openai/gpt-4o-mini", etc.
    messages=[
        {"role": "system", "content": "You are a helpful medical assistant."},
        {"role": "user", "content": "Summarize: Patient presents with chest pain and elevated troponin."}
    ],
    max_tokens=150
)

print(response.choices[0].message.content)

LIVE DEMO!!!
