Reading Rocks!

(Natural Language Processing)

https://classroom.github.com/a/78aoV6u5

Links & Self-Guided Review

TB Hack Day on Feb 11th! Register at https://seatrac.uw.edu/training/i4tbworkinggroup

Speech and Language Processing — Jurafsky & Martin, comprehensive NLP textbook (free online, chapters 2-6 cover this lecture)
NLTK Book — official tutorial with exercises (chapters 1-7)
spaCy 101 — core concepts and usage patterns
Real Python: NLP with spaCy — hands-on tutorial
Regex101 — interactive regex tester with explanation
scispaCy — biomedical NLP models

Natural Language Processing

What is NLP?

Humans communicate in natural language—English, Spanish, clinical shorthand. Computers need structure—numbers, categories, defined relationships. Natural language processing (NLP) bridges this gap, transforming free-form text into data that algorithms can analyze.

NLP powers everyday tools:

Search engines understand queries and match relevant documents
Translation services convert between languages
Voice assistants interpret spoken commands
Email filters detect spam and categorize messages

The core challenges:

Ambiguity — “bank” means river bank or financial bank?
Context — “not bad” means good
Variation — “BP”, “blood pressure”, “b.p.” all mean the same thing
Implicit knowledge — “take with food” implies meals

Why NLP for Health Data?

Electronic health records contain vast amounts of free-text data: physician notes, discharge summaries, radiology reports, pathology findings. Surveys and patient-reported outcomes add more unstructured text. NLP lets you:

Extract diagnoses from clinical notes that weren’t coded
Identify adverse events mentioned in free text
Analyze sentiment (positive/negative tone) in patient feedback
Build cohorts from text descriptions that predate structured fields

Data Source	Example Text	What NLP Can Extract
Progress notes	“Patient denies chest pain, reports mild fatigue”	Symptoms (negated and affirmed)
Radiology reports	“No acute intracranial abnormality”	Findings, negation status
Discharge summaries	“Follow up with cardiology in 2 weeks”	Care instructions, timing
Patient surveys	“The wait time was frustrating”	Sentiment, specific complaints

Classical vs LLM-based Approaches

Classical NLP uses explicit pipelines: tokenize text, apply rules or statistics, convert to numerical features. LLM-based NLP uses neural networks trained on massive text corpora to learn representations end-to-end.

Aspect	Classical NLP	LLM-based

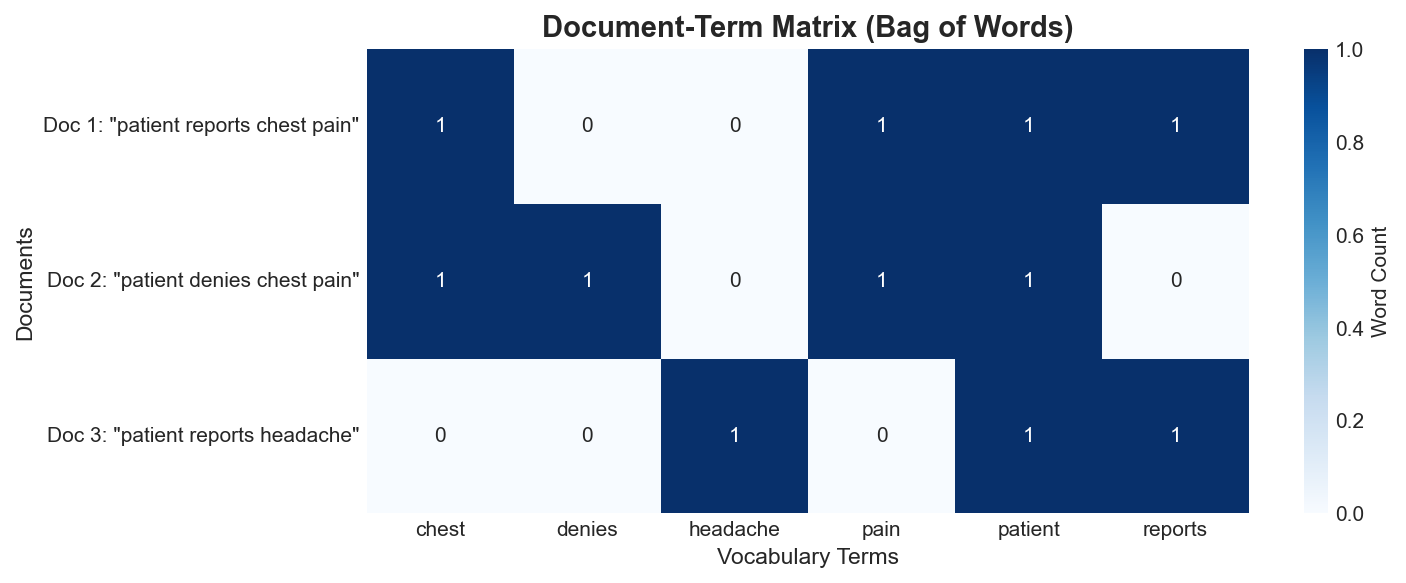

Text representation	Word counts, TF-IDF	Contextual embeddings
Pipeline	Explicit stages (tokenize → analyze → vectorize)	Often end-to-end
Interpretability	High—you can inspect features	Lower—embeddings are opaque
Computational cost	Low	High
Training data	Works with small labeled sets	Benefits from massive pretraining

When to use classical NLP:

You need interpretable features (“which words predict readmission?”)
Computational resources are limited
You’re building rule-based extraction
The task is well-defined and doesn’t require deep understanding

When to use LLMs:

The task requires understanding context and nuance
You need text generation or summarization
Transfer learning from general knowledge helps your domain

Most real-world clinical NLP systems combine both: classical techniques for structured extraction, LLMs for complex reasoning.

Tools: NLTK vs spaCy

Two Python libraries dominate classical NLP work.

NLTK (Natural Language Toolkit) is designed for learning and research. It offers many algorithms for each task, letting you explore different approaches. Processing is string-based—you work with lists of words and manual pipelines.

spaCy is designed for production applications. It provides one optimized algorithm per task, prioritizing speed and ease of use. Processing is object-oriented—you work with Doc, Token, and Span objects that carry rich annotations.

Aspect	NLTK	spaCy
Philosophy	Educational, comprehensive	Production-ready, fast
Algorithm choice	Many algorithms to choose	One best algorithm per task
Processing style	String-based	Object-oriented (Doc, Token, Span)
Pipeline	Manual assembly	Integrated pipeline
Best for	Learning, research	Applications

spaCy’s object model:

Doc — a processed document containing all tokens and annotations
Token — a single word or punctuation mark with attributes (text, POS, lemma)
Span — a slice of a Doc (like a substring, but with token information)

Installation

Tool	Install	First-time Setup
NLTK	`pip install nltk`	`nltk.download('punkt_tab')`, `nltk.download('stopwords')`
spaCy	`pip install spacy`	`python -m spacy download en_core_web_sm`
scikit-learn	`pip install scikit-learn`	(none required)

Text Processing Fundamentals

Before analysis, we transform raw text into a consistent format. These preprocessing steps are foundational to nearly all NLP work.

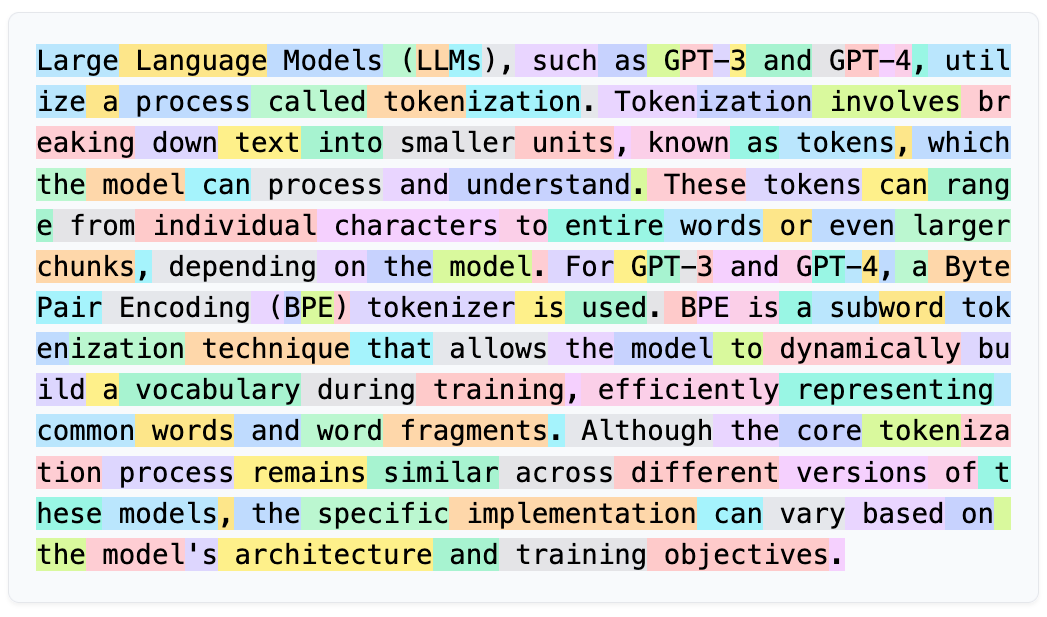

Tokenization

Tokenization splits text into individual units called tokens—usually words, but sometimes punctuation, numbers, or subwords. Every subsequent NLP step operates on tokens.

Why tokenization matters:

“500mg” as one token vs. “500” + “mg” affects downstream analysis
Abbreviations like “Dr.” shouldn’t be split at the period
Medical terms like “COVID-19” should stay together

Tokenization and NLP methods: The choice of tokenization strategy depends on your downstream task. Classical NLP typically uses word-level tokenization. Modern LLMs use subword tokenization (BPE, WordPiece), which splits words into smaller pieces like “pre” + “process” + “ing”—this handles rare words better and creates a fixed vocabulary size. The tokenizer and model must match: you can’t use a word tokenizer with a model trained on subwords.

Sentence: "Dr. Smith prescribed 500mg ibuprofen."

Whitespace split:   ["Dr.", "Smith", "prescribed", "500mg", "ibuprofen."]
                    ↑ keeps punctuation attached

NLTK word_tokenize: ["Dr.", "Smith", "prescribed", "500mg", "ibuprofen", "."]
                    ↑ handles abbreviations, splits final "."

spaCy tokenizer:    ["Dr.", "Smith", "prescribed", "500", "mg", "ibuprofen", "."]
                    ↑ splits numbers from units

Reference Card: Tokenization

Category	Method	Purpose & Arguments	Typical Output
Basic	`text.split()`	Splits on whitespace only.	`list[str]`
NLTK	`nltk.word_tokenize(text)`	Tokenizes handling punctuation and abbreviations.	`list[str]`
NLTK	`nltk.sent_tokenize(text)`	Splits text into sentences.	`list[str]`
NLTK	`RegexpTokenizer(pattern)`	Custom tokenizer using regex pattern (e.g., `r'\w+'` for words only).	`list[str]` via `.tokenize(text)`
spaCy	`for token in doc`	Iterates tokens after `doc = nlp(text)`.	`Token` objects

Code Snippet: Tokenization

import nltk
nltk.download('punkt_tab')

text = "Dr. Smith prescribed 500mg ibuprofen. Take twice daily."

# Naive split
print(text.split())
# ['Dr.', 'Smith', 'prescribed', '500mg', 'ibuprofen.', 'Take', 'twice', 'daily.']

# NLTK word tokenize
print(nltk.word_tokenize(text))
# ['Dr.', 'Smith', 'prescribed', '500mg', 'ibuprofen', '.', 'Take', 'twice', 'daily', '.']

# NLTK sentence tokenize
print(nltk.sent_tokenize(text))
# ['Dr. Smith prescribed 500mg ibuprofen.', 'Take twice daily.']

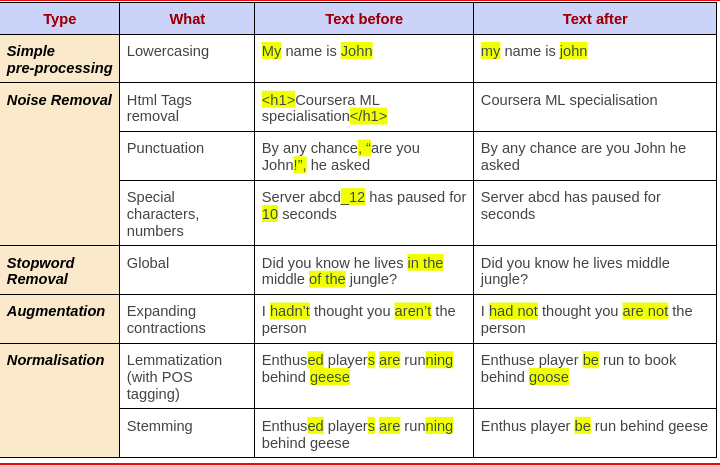

Normalization

Normalization transforms tokens into a consistent form.

Lowercasing reduces vocabulary size by treating “Patient” and “patient” as the same word.

Caveat: Lowercasing can destroy useful information. “US” (United States) becomes “us” (pronoun). In clinical text, abbreviations often rely on case: “MS” could mean multiple sclerosis, mental status, or morphine sulfate.

Stopword removal filters out common words like “the”, “is”, “and” that appear frequently but carry little meaning for many tasks. A stopword list is a predefined set of these common words.

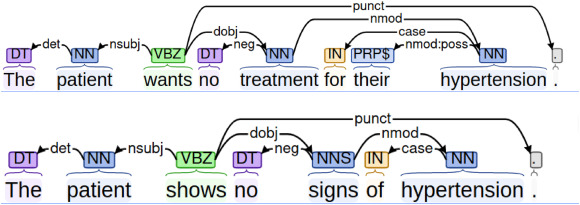

Caveat: Stopwords aren’t always useless. “No chest pain” loses critical meaning if you remove “no”. For clinical text, be careful with negation words.

Punctuation removal strips commas, periods, and other marks—unless they carry meaning (like hyphens in “COVID-19”).

Reference Card: Normalization

Category	Method	Purpose & Arguments	Typical Output
Case	`text.lower()`	Converts string to lowercase.	`str`
Punctuation	`text.translate(str.maketrans('', '', string.punctuation))`	Removes all punctuation characters.	`str`
Stopwords	`stopwords.words('english')`	Returns NLTK’s English stopword list.	`list[str]` (179 words)

Code Snippet: Normalization

import string
import nltk
from nltk.corpus import stopwords

nltk.download('punkt_tab')
nltk.download('stopwords')

text = "The Patient, age 45, presents WITH chest pain."

text = text.lower()
text = text.translate(str.maketrans('', '', string.punctuation))
tokens = nltk.word_tokenize(text)

stop_words = set(stopwords.words('english'))
tokens = [t for t in tokens if t not in stop_words]

print(tokens)
# ['patient', 'age', '45', 'presents', 'chest', 'pain']

Stemming and Lemmatization

Both techniques reduce words to a common base form, helping group related words together.

Stemming chops off word endings using simple rules. It’s fast but crude—“studies” becomes “studi” (not a real word).

Lemmatization uses vocabulary and word structure analysis to find the actual dictionary form (the lemma). “studies” → “study”, “better” → “good”. More accurate but slower.

Word          Stemmer Output    Lemmatizer Output
───────────────────────────────────────────────────
"running"     "run"             "run"
"studies"     "studi"           "study"
"better"      "better"          "good" (with POS=adj)
"universities" "univers"        "university"

Reference Card: Stemming & Lemmatization

Category	Method	Purpose & Arguments	Typical Output
Stemming	`PorterStemmer().stem(word)`	Classic rule-based English stemmer.	`str`
Stemming	`SnowballStemmer('english').stem(word)`	Improved Porter variant.	`str`
Lemmatization	`WordNetLemmatizer().lemmatize(word, pos='v')`	Dictionary lookup. `pos`: ‘n’, ‘v’, ‘a’, ‘r’.	`str`
Lemmatization	`token.lemma_`	spaCy attribute, automatic in pipeline.	`str`

Code Snippet: Stemming vs Lemmatization

from nltk.stem import PorterStemmer, WordNetLemmatizer
import nltk
nltk.download('wordnet')

stemmer = PorterStemmer()
lemmatizer = WordNetLemmatizer()

words = ["running", "studies", "better", "caring"]

for word in words:
    print(f"{word}: stem={stemmer.stem(word)}, lemma={lemmatizer.lemmatize(word, pos='v')}")

LIVE DEMO

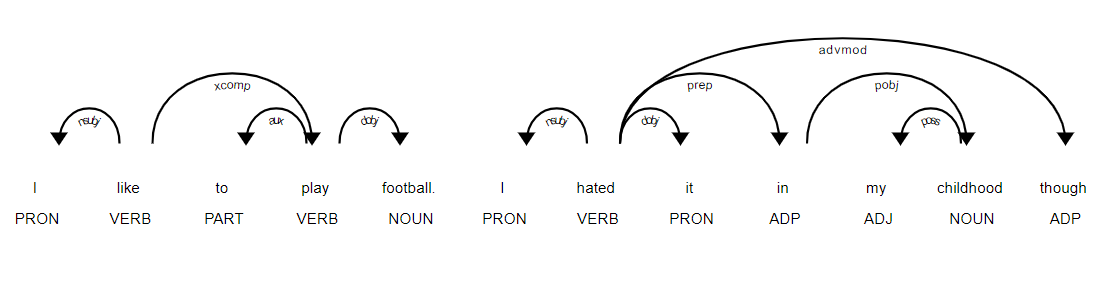

Part-of-Speech Tagging

Part-of-speech (POS) tagging labels each token with its grammatical role: noun, verb, adjective, etc.

Concepts

POS tagging enables:

Better lemmatization — knowing “running” is a verb vs noun
Information extraction — find all nouns to identify topics
Syntax analysis — understand sentence structure

"The patient reported severe chest pain yesterday."

The      → DT  (determiner)
patient  → NN  (noun, singular)
reported → VBD (verb, past tense)
severe   → JJ  (adjective)
chest    → NN  (noun, singular)
pain     → NN  (noun, singular)

Tags follow standardized sets. Penn Treebank tags (NLTK) are the traditional English standard. Universal Dependencies tags (spaCy) work across languages.

Common POS Tags

Tag	Description	Example
NN	Noun, singular	patient, pain
NNS	Noun, plural	patients, symptoms
VB	Verb, base form	diagnose, treat
VBD	Verb, past tense	diagnosed, treated
VBG	Verb, gerund	diagnosing, running
JJ	Adjective	severe, chronic
RB	Adverb	quickly, very
DT	Determiner	the, a, an

NLTK

Reference Card: NLTK POS Tagging

Category	Method	Purpose & Arguments	Typical Output
Tag	`nltk.pos_tag(tokens)`	Tags list of tokens with POS.	`list[tuple[str, str]]`
Help	`nltk.help.upenn_tagset('NN')`	Explains a Penn Treebank tag.	Printed description

Code Snippet: NLTK POS Tagging

import nltk
nltk.download('averaged_perceptron_tagger_eng')

text = "The patient reported severe chest pain."
tokens = nltk.word_tokenize(text)
tagged = nltk.pos_tag(tokens)

print(tagged)
# [('The', 'DT'), ('patient', 'NN'), ('reported', 'VBD'),
#  ('severe', 'JJ'), ('chest', 'NN'), ('pain', 'NN'), ('.', '.')]

# Find all nouns
nouns = [word for word, tag in tagged if tag.startswith('NN')]
print(nouns)  # ['patient', 'chest', 'pain']

spaCy

Reference Card: spaCy POS Tagging

Category	Method / Attribute	Purpose & Arguments	Typical Output
Coarse	`token.pos_`	Universal Dependencies POS tag.	`str` (`"NOUN"`, `"VERB"`)
Fine	`token.tag_`	Fine-grained Penn Treebank style tag.	`str` (`"NN"`, `"VBD"`)
Help	`spacy.explain(tag)`	Explains any spaCy tag.	`str`

Code Snippet: spaCy POS Tagging

import spacy

nlp = spacy.load("en_core_web_sm")
doc = nlp("The patient reported severe chest pain.")

for token in doc:
    print(f"{token.text:12} {token.pos_:6} {token.tag_}")

# The          DET    DT
# patient      NOUN   NN
# reported     VERB   VBD
# severe       ADJ    JJ
# chest        NOUN   NN
# pain         NOUN   NN

Named Entity Recognition

Named Entity Recognition (NER) identifies and classifies specific entities in text: people, organizations, locations, dates. For clinical text, specialized models can extract medications, dosages, diagnoses, and procedures.

Concepts

Example: “Dr. Smith at UCSF prescribed Metformin 500mg on January 15.”

Text	Entity Type
Dr. Smith	PERSON
UCSF	ORG (organization)
Metformin	(needs medical NER model)
500mg	QUANTITY
January 15	DATE

Standard NER entities: PERSON, ORG, GPE (location), DATE, TIME, MONEY, PERCENT

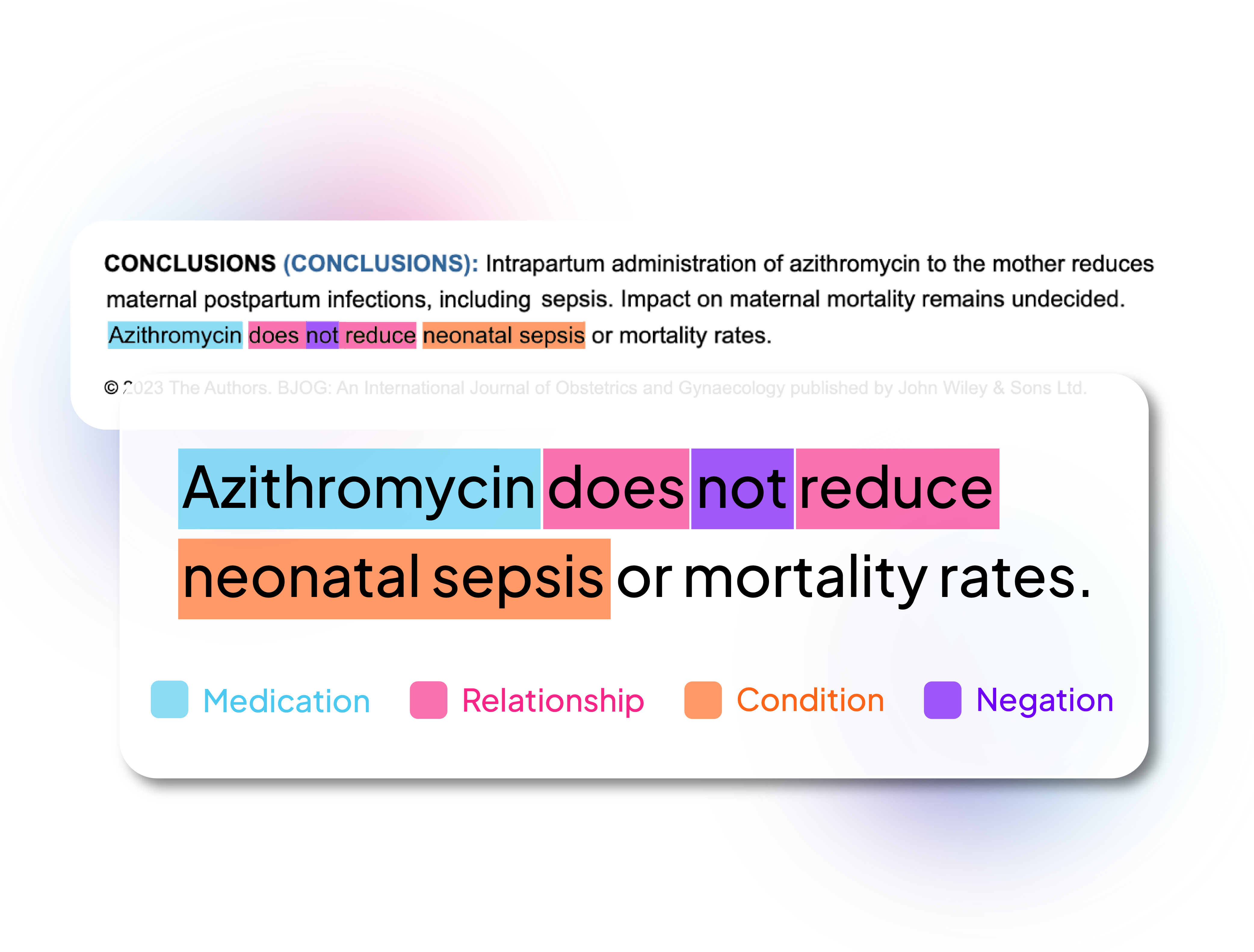

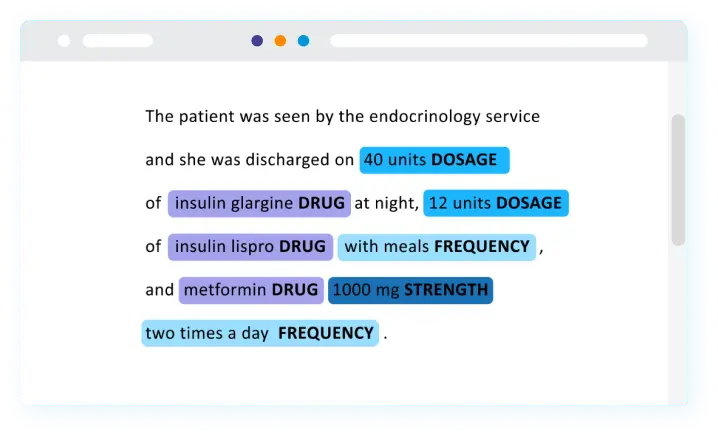

Clinical NER entities (specialized models): MEDICATION, DOSAGE, DIAGNOSIS, PROCEDURE, ANATOMY

NLTK

NLTK’s NER requires POS-tagged input and returns a tree structure.

Reference Card: NLTK NER

Category	Method	Purpose & Arguments	Typical Output
Extract	`nltk.ne_chunk(tagged)`	Extracts named entities from POS-tagged tokens.	`nltk.Tree`
Binary	`nltk.ne_chunk(tagged, binary=True)`	Labels NE vs non-entity only.	`nltk.Tree`

Code Snippet: NLTK NER

import nltk
nltk.download('maxent_ne_chunker_tab')
nltk.download('words')

text = "Dr. Smith at UCSF prescribed medication."
tokens = nltk.word_tokenize(text)
tagged = nltk.pos_tag(tokens)
entities = nltk.ne_chunk(tagged)

for chunk in entities:
    if hasattr(chunk, 'label'):
        print(f"{' '.join(c[0] for c in chunk)}: {chunk.label()}")
# UCSF: ORGANIZATION

spaCy

Reference Card: spaCy NER

Category	Method / Attribute	Purpose & Arguments	Typical Output
Access	`doc.ents`	All named entities in document.	`tuple[Span]`
Text	`ent.text`	The entity’s text content.	`str`
Type	`ent.label_`	Entity classification.	`str` (`"PERSON"`, `"ORG"`)
Position	`ent.start`, `ent.end`	Token indices of entity span.	`int`

Code Snippet: spaCy NER

import spacy

nlp = spacy.load("en_core_web_sm")
doc = nlp("Dr. Smith at UCSF prescribed medication on January 15.")

for ent in doc.ents:
    print(f"{ent.text}: {ent.label_}")

# Dr. Smith: PERSON
# UCSF: ORG
# January 15: DATE

Text Extraction

Beyond NER, we often need to extract specific patterns from text—vitals, dosages, dates, and other structured information. Regex is the workhorse for syntactic patterns; for more complex extraction, consider rule-based systems (spaCy’s Matcher) or template filling.

Regex Patterns

Regular expressions (regex, import re) are pattern-matching tools for extracting text that follows predictable formats. Use regex when:

NER doesn’t cover your pattern — vitals like “120/80” or dosages like “500mg” aren’t standard NER types
You need exact format control — dates in “MM/DD/YYYY” vs “Month DD, YYYY” vs “DD-Mon-YY”
The pattern is syntactic, not semantic — phone numbers, IDs, lab values follow structural rules
You’re building a preprocessing pipeline — clean or normalize text before further analysis

NER identifies what something means (this is a person, this is a date). Regex extracts what something looks like (three digits, slash, three digits).

Pattern     Matches                Example
────────────────────────────────────────────────────────
\d          digit                  "5" in "500mg"
\d+         one or more digits     "500" in "500mg"
\w+         word characters        "patient" in "patient:"
[A-Z]+      uppercase letters      "BP" in "BP: 120/80"
\s          whitespace             spaces, tabs, newlines
(...)       capture group          extract matched portion
|           OR                     "mg|ml|mcg"

Clinical patterns:
• Vitals:  \d{2,3}/\d{2,3}        →  "120/80"
• Dosage:  \d+\s?(mg|ml|mcg)      →  "500 mg", "10ml"
• Date:    \d{1,2}/\d{1,2}/\d{4}  →  "01/15/2025"

Reference Card: Python `re` Module

Category	Method	Purpose & Arguments	Typical Output
Search	`re.search(pattern, text)`	Finds first match in text.	`Match` or `None`
Find All	`re.findall(pattern, text)`	Finds all non-overlapping matches.	`list[str]`
Replace	`re.sub(pattern, repl, text)`	Replaces matches with `repl` string.	`str`
Extract	`match.group()`	Returns the matched text.	`str`
Groups	`match.groups()`	Returns all captured groups.	`tuple[str]`

Code Snippet: Regex in the `re` Module

import re

note = "BP 120/80, Metformin 500mg, Lab 01/15/2025"

bp = re.findall(r'\d{2,3}/\d{2,3}', note)                 # ['120/80']
meds = re.findall(r'(\w+)\s+(\d+)(mg|ml)', note)          # [('Metformin', '500', 'mg')]
cleaned = re.sub(r'\d{2}/\d{2}/\d{4}', '[DATE]', note)    # redact dates

Regex Across NLP Tools

Regex patterns appear throughout the NLP toolkit—not just in the re module. Learning regex syntax pays off because you’ll reuse it in many contexts.

# TOKENIZATION: RegexpTokenizer uses regex to define what counts as a token
from nltk.tokenize import RegexpTokenizer
tokenizer = RegexpTokenizer(r'\w+')           # words only, no punctuation
tokenizer.tokenize("Hello, world!")           # ['Hello', 'world']

# PANDAS: .str methods accept regex for text columns
import pandas as pd
df = pd.DataFrame({'notes': ['BP 120/80', 'BP 130/85']})
df['systolic'] = df['notes'].str.extract(r'(\d+)/\d+')   # extract first number

# SPACY MATCHER: pattern-based matching (not regex, but similar concept)
# from spacy.matcher import Matcher
# matcher.add("BP_PATTERN", [[{"SHAPE": "ddd"}, {"TEXT": "/"}, {"SHAPE": "dd"}]])

LIVE DEMO

Text Representation

To use text in machine learning, we need numerical representations. These classical approaches convert documents into vectors (lists of numbers).

Bag of Words

Bag of Words (BoW) counts how many times each word appears, ignoring order. The result is a document-term matrix where each row is a document and each column is a word from the vocabulary (all unique words across documents).

Documents:
1. "patient reports chest pain"
2. "patient denies chest pain"
3. "patient reports headache"

Vocabulary: [chest, denies, headache, pain, patient, reports]

Document-Term Matrix:
           chest  denies  headache  pain  patient  reports
Doc 1        1       0        0       1       1        1
Doc 2        1       1        0       1       1        0
Doc 3        0       0        1       0       1        1

Limitations:

Ignores word order (“patient reports pain” = “pain reports patient”)
Creates sparse matrices (most values are 0)
Common words dominate the counts

Reference Card: `CountVectorizer`

Category	Method	Purpose & Arguments	Typical Output
Create	`CountVectorizer(max_features=N, stop_words='english')`	Initializes vectorizer. `ngram_range=(1,1)` for unigrams.	`CountVectorizer`
Fit	`.fit_transform(docs)`	Learns vocabulary and transforms documents to counts.	Sparse matrix
Inspect	`.get_feature_names_out()`	Returns learned vocabulary.	`ndarray[str]`
Convert	`.toarray()`	Converts sparse matrix to dense array.	`ndarray`

Code Snippet: Bag of Words

from sklearn.feature_extraction.text import CountVectorizer

docs = [
    "patient reports chest pain",
    "patient denies chest pain",
    "patient reports headache"
]

vectorizer = CountVectorizer()
X = vectorizer.fit_transform(docs)

print(vectorizer.get_feature_names_out())
# ['chest' 'denies' 'headache' 'pain' 'patient' 'reports']

print(X.toarray())
# [[1 0 0 1 1 1]
#  [1 1 0 1 1 0]
#  [0 0 1 0 1 1]]

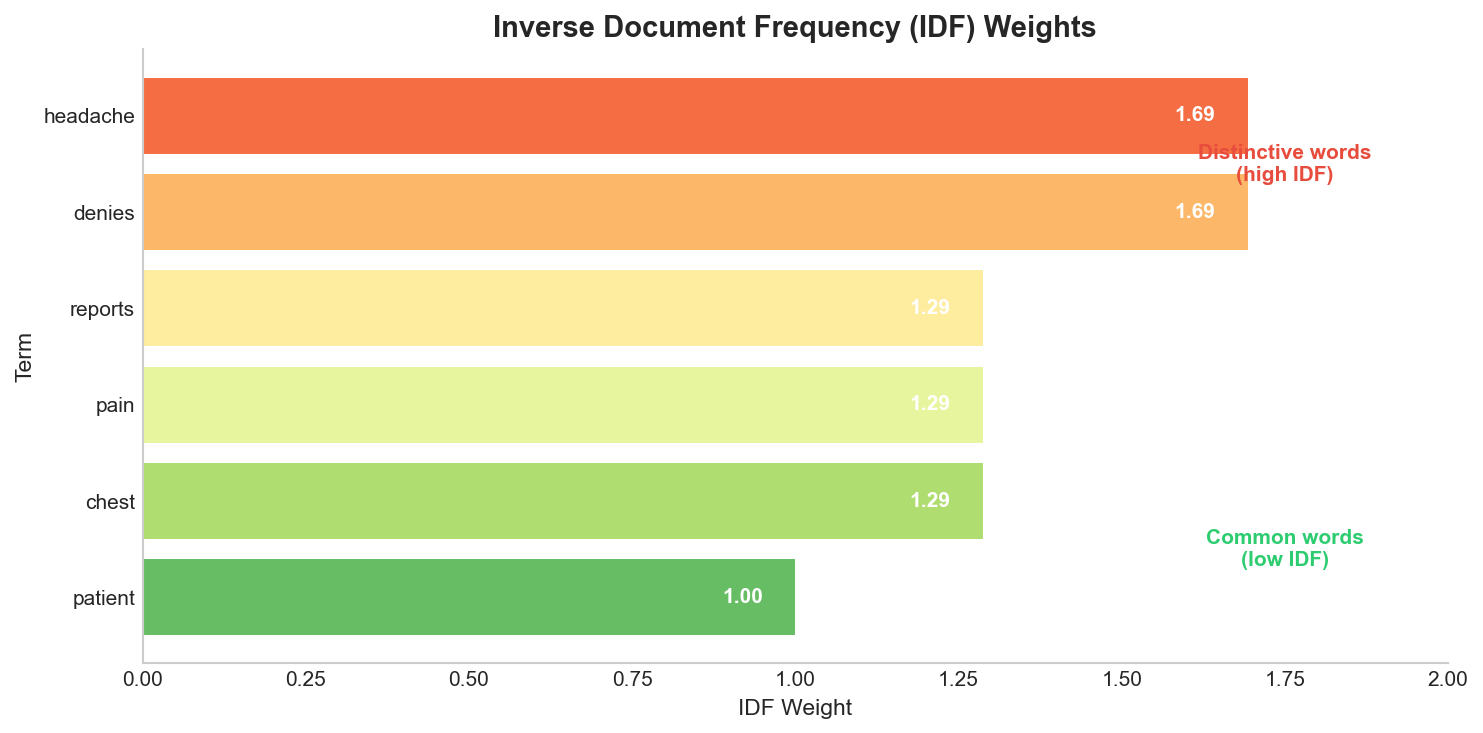

TF-IDF

TF-IDF (Term Frequency–Inverse Document Frequency) improves on raw counts by weighting words based on how distinctive they are. Words that appear in every document get downweighted; rare, specific terms get upweighted.

$$\text{TF-IDF}(word, doc) = \text{TF}(word, doc) \times \text{IDF}(word)$$

TF (Term Frequency) — how often the word appears in this document
IDF (Inverse Document Frequency) — how rare the word is across all documents: $\log(\text{total docs} / \text{docs containing word})$

Note: scikit-learn’s TfidfVectorizer uses a smoothed IDF formula by default: $\log((n+1)/(df+1)) + 1$, where $n$ is the total number of documents and $df$ is the document frequency. This prevents division by zero and slightly different values than the standard formula.

Example: “diabetes” appears in 10 of 1000 documents → high IDF (distinctive). “patient” appears in 900 of 1000 → low IDF (common).

Reference Card: `TfidfVectorizer`

Category	Method	Purpose & Arguments	Typical Output
Create	`TfidfVectorizer(max_df=0.9, min_df=2)`	Tokenizes + applies TF-IDF. `max_df`/`min_df` filter by doc frequency.	`TfidfVectorizer`
Fit	`.fit_transform(docs)`	Learns vocabulary and transforms to TF-IDF weights.	Sparse matrix
Transform	`.transform(new_docs)`	Transforms new text using learned vocabulary (no refitting).	Sparse matrix
Inspect	`.idf_`	Learned IDF weights for each term.	`ndarray[float]`

Code Snippet: TF-IDF

from sklearn.feature_extraction.text import TfidfVectorizer

docs = [
    "patient reports chest pain",
    "patient denies chest pain",
    "patient reports headache"
]

vectorizer = TfidfVectorizer()
X = vectorizer.fit_transform(docs)

for word, idf in zip(vectorizer.get_feature_names_out(), vectorizer.idf_):
    print(f"{word}: IDF = {idf:.2f}")

# patient: IDF = 1.00   ← appears in all docs, lowest IDF
# denies: IDF = 1.69    ← appears in only 1 doc, high IDF

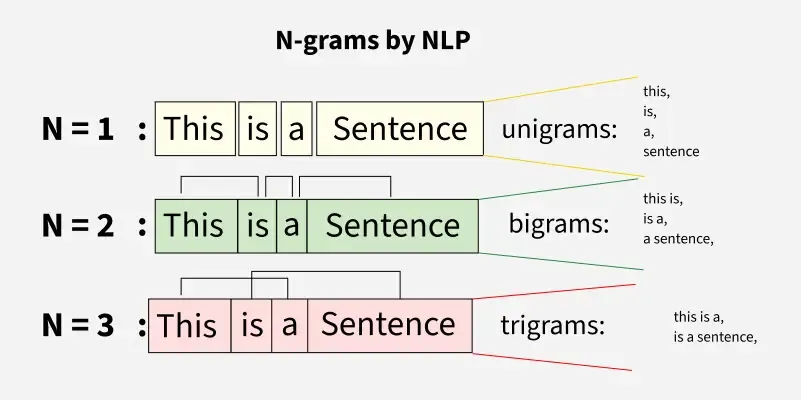

N-grams

Single words (unigrams) lose context. N-grams capture sequences of N consecutive words.

Bigrams (n=2): word pairs — “chest pain”, “denies chest”
Trigrams (n=3): word triples — “patient denies chest”

Why n-grams matter for clinical text:

“chest pain” is meaningful as a unit
“denies chest pain” captures negation context
“no chest pain” vs “chest pain” mean opposite things

Reference Card: N-grams

Category	Method	Purpose & Arguments	Example Output
Unigrams	`ngram_range=(1, 1)`	Single words only (default).	`['chest', 'pain']`
+ Bigrams	`ngram_range=(1, 2)`	Words and word pairs.	`['chest', 'pain', 'chest pain']`
+ Trigrams	`ngram_range=(1, 3)`	Through 3-word sequences.	`['chest', 'chest pain', 'denies chest pain']`

Use with CountVectorizer or TfidfVectorizer.

Code Snippet: N-grams

from sklearn.feature_extraction.text import CountVectorizer

docs = ["patient denies chest pain", "patient reports chest pain"]

vectorizer = CountVectorizer(ngram_range=(1, 2))
X = vectorizer.fit_transform(docs)

print(vectorizer.get_feature_names_out())
# ['chest', 'chest pain', 'denies', 'denies chest', 'pain',
#  'patient', 'patient denies', 'patient reports', 'reports', 'reports chest']

Word Vectors

The representations above treat each word independently—“diabetes” and “hypertension” are just as different as “diabetes” and “pizza.” Word vectors (embeddings) capture semantic similarity: related words have similar vectors.

spaCy’s medium and large models (en_core_web_md, en_core_web_lg) include pre-computed word vectors. We’ll cover how embeddings work in Lecture 07.

Code Snippet: Word Vectors

import spacy
# Note: en_core_web_sm has no vectors; use _md or _lg for word vectors
nlp = spacy.load("en_core_web_md")  # medium model has vectors
doc = nlp("diabetes hypertension")
print(doc[0].vector.shape)          # (300,) - 300-dimensional vector
print(doc[0].similarity(doc[1]))    # ~0.5 - related medical terms

For classical NLP, TF-IDF is your go-to representation: interpretable, effective, and doesn’t require special models.

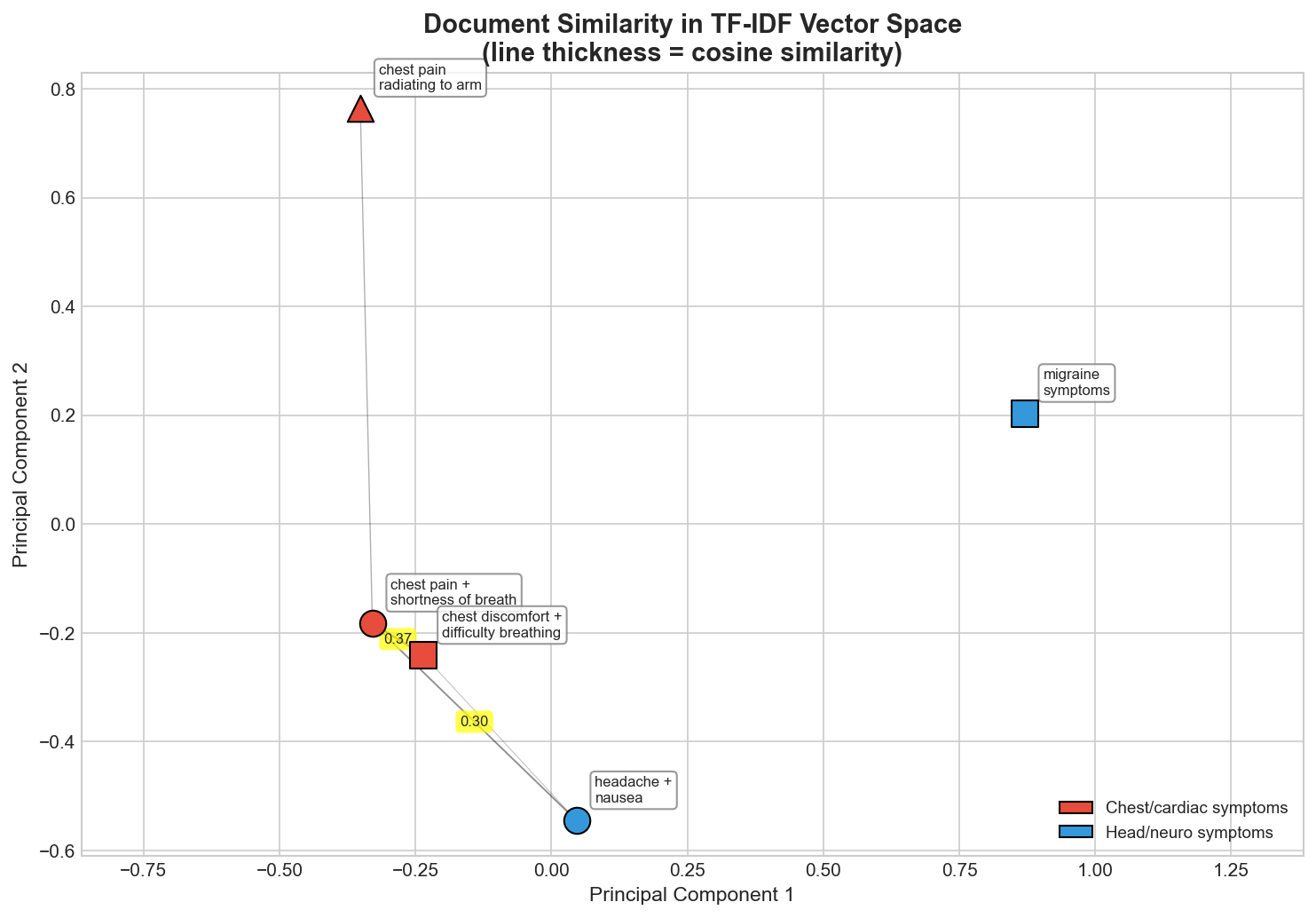

Document Similarity

With text represented as vectors, we can measure how similar documents are. This enables search, clustering, and recommendation systems. Cosine similarity is the standard choice for text; alternatives include Jaccard similarity (for sets of words) and Euclidean distance (sensitive to document length).

Cosine Similarity

Cosine similarity measures the angle between two vectors rather than their distance. This makes it robust to document length—a long document and a short document about the same topic will have high similarity.

$$\cos(\theta) = \frac{A \cdot B}{|A| \times |B|}$$

Range: 0 to 1 for TF-IDF vectors
1.0 = identical direction (very similar)
0.0 = perpendicular (no shared words)

Reference Card: Document Similarity

Category	Method	Purpose & Arguments	Typical Output
Pairwise	`cosine_similarity(X)`	Similarity between all row pairs in X.	`ndarray` (n×n)
Compare	`cosine_similarity(X, Y)`	Similarity between rows of X and Y.	`ndarray`
Distance	`spatial.distance.cosine(u, v)`	Cosine distance (1 - similarity).	`float`
Jaccard	`jaccard_score(set1, set2)`	Intersection/union of word sets.	`float` (0-1)

Code Snippet: Document Similarity

from sklearn.feature_extraction.text import TfidfVectorizer
from sklearn.metrics.pairwise import cosine_similarity

docs = [
    "patient presents with chest pain and shortness of breath",
    "patient reports chest discomfort and difficulty breathing",
    "patient complains of headache and nausea"
]

vectorizer = TfidfVectorizer()
X = vectorizer.fit_transform(docs)

similarities = cosine_similarity(X)
print(similarities)
# [[1.   0.35 0.11]
#  [0.35 1.   0.11]
#  [0.11 0.11 1.  ]]
# Docs 0 and 1 are most similar (both about chest/breathing)

# Jaccard: compare word sets (ignores frequency)
words0 = set(docs[0].lower().split())
words1 = set(docs[1].lower().split())
jaccard = len(words0 & words1) / len(words0 | words1)
print(f"Jaccard: {jaccard:.2f}")  # 0.31

Specialized Tools

General NLP tools work well for common text, but clinical language requires specialized models.

Tool	Focus	Access
scispaCy	Biomedical NER	`pip install scispacy`
MedSpaCy	Negation detection, clinical pipelines	`pip install medspacy`
cTAKES	Full clinical NLP (Java)	Apache, open source
MetaMap	UMLS concept extraction	NLM, requires license

UMLS (Unified Medical Language System) is a biomedical vocabulary database from the National Library of Medicine. It maps between coding systems (ICD, SNOMED, RxNorm) and provides standardized concept identifiers. Tools like MetaMap and QuickUMLS link free-text mentions to UMLS concepts.

Challenges

General NLP tools struggle with clinical text:

Abbreviations — “pt c/o SOB” = “patient complains of shortness of breath”. Same abbreviation, different meanings: “MS” = multiple sclerosis OR mental status OR morphine sulfate.

Negation — “Patient denies chest pain” means chest pain is ABSENT. Simple keyword extraction misses this. Basic negation detection looks for negation words (“no”, “denies”, “without”) within a few words of the finding: re.search(r'\b(no|denies?|without)\s+\w+\s+chest\s+pain', text, re.I) would catch this pattern.

Uncertainty — “possible pneumonia” ≠ “confirmed pneumonia”. “rule out MI” = suspicion, not diagnosis.

Temporality — “History of diabetes” (past) vs “Patient has diabetes” (current) vs “Risk of diabetes” (future).

Variations — “hypertention”, “htn”, “HTN”, “high blood pressure” all mean the same thing.

Pipelines

Putting it all together: combine preprocessing, analysis, and extraction into reusable pipelines.

NLTK Pipeline

NLTK requires manual assembly—each step is explicit and configurable.

Code Snippet: NLTK Pipeline

import nltk
import string
import re
from nltk.corpus import stopwords
from nltk.stem import WordNetLemmatizer

def nltk_pipeline(text):
    # Step 1: Tokenize
    tokens = nltk.word_tokenize(text.lower())

    # Step 2: Remove punctuation and stopwords
    stop_words = set(stopwords.words('english')) - {'no', 'not'}  # keep negations
    tokens = [t for t in tokens if t not in string.punctuation and t not in stop_words]

    # Step 3: Lemmatize
    lemmatizer = WordNetLemmatizer()
    tokens = [lemmatizer.lemmatize(t) for t in tokens]

    # Step 4: POS tag
    tagged = nltk.pos_tag(tokens)

    # Step 5: Extract named entities
    entities = nltk.ne_chunk(tagged)

    # Step 6: Extract patterns with regex
    bp = re.findall(r'\d{2,3}/\d{2,3}', text)

    return {
        'tokens': tokens,
        'pos_tags': tagged,
        'nouns': [word for word, tag in tagged if tag.startswith('NN')],
        'entities': entities,
        'blood_pressure': bp
    }

note = "Patient John Smith, age 45, presents with BP 140/90 and chest pain."
result = nltk_pipeline(note)
print(f"Tokens: {result['tokens']}")
print(f"Nouns: {result['nouns']}")
print(f"BP: {result['blood_pressure']}")
# Tokens: ['patient', 'john', 'smith', 'age', '45', 'present', 'bp', '140/90', 'chest', 'pain']
# Nouns: ['patient', 'john', 'smith', 'age', 'bp', 'chest', 'pain']
# BP: ['140/90']

spaCy Pipeline

spaCy’s pipeline is integrated—one call processes everything.

Code Snippet: spaCy Pipeline

import spacy
import re

def spacy_pipeline(text):
    nlp = spacy.load("en_core_web_sm")
    doc = nlp(text)

    # All analysis available on doc object
    return {
        'tokens': [token.text for token in doc],
        'lemmas': [token.lemma_ for token in doc if not token.is_punct],
        'nouns': [token.lemma_ for token in doc if token.pos_ == "NOUN"],
        'entities': [(ent.text, ent.label_) for ent in doc.ents],
        'blood_pressure': re.findall(r'\d{2,3}/\d{2,3}', text)
    }

note = "Dr. Martinez at UCSF prescribed Metformin 500mg on 01/15/2025. Patient reports improved glucose control."
result = spacy_pipeline(note)
print(f"Nouns: {result['nouns']}")
print(f"Entities: {result['entities']}")
print(f"BP: {result['blood_pressure']}")
# Nouns: ['Dr.', 'UCSF', 'Metformin', 'glucose', 'control']
# Entities: [('Dr. Martinez', 'PERSON'), ('UCSF', 'ORG'), ('01/15/2025', 'DATE')]
# BP: []

Reference Card: spaCy Pipeline

Category	Method / Attribute	Purpose & Arguments	Typical Output
Setup	`spacy.load("en_core_web_sm")`	Loads English pipeline model.	`Language` (`nlp`)
Process	`nlp(text)`	Runs full pipeline in one call.	`Doc` object
Token	`token.lemma_`	Dictionary base form.	`str`
Token	`token.pos_`	Part-of-speech tag.	`str` (`"NOUN"`, `"VERB"`)
Token	`token.is_stop`, `token.is_punct`	Boolean filters.	`bool`
Doc	`doc.ents`	Named entities found.	`tuple[Span]`

Comparing the Approaches

Aspect	NLTK Pipeline	spaCy Pipeline
Assembly	Manual, step-by-step	Automatic, one call
Customization	Full control at each step	Configure via `nlp.disable()`
Stopwords	Explicit filtering	`token.is_stop` attribute
NER quality	Basic	Better out-of-box
Speed	Slower	Faster

Links & Self-Guided Review

Natural Language Processing

What is NLP?

Why NLP for Health Data?

Classical vs LLM-based Approaches

Tools: NLTK vs spaCy

Installation

Text Processing Fundamentals

Tokenization

Reference Card: Tokenization

Code Snippet: Tokenization

Normalization

Reference Card: Normalization

Code Snippet: Normalization

Stemming and Lemmatization

Reference Card: Stemming & Lemmatization

Code Snippet: Stemming vs Lemmatization

LIVE DEMO

Part-of-Speech Tagging

Concepts

Common POS Tags

NLTK

Reference Card: NLTK POS Tagging

Code Snippet: NLTK POS Tagging

spaCy

Reference Card: spaCy POS Tagging

Code Snippet: spaCy POS Tagging

Named Entity Recognition

Concepts

NLTK

Reference Card: NLTK NER

Code Snippet: NLTK NER

spaCy

Reference Card: spaCy NER

Code Snippet: spaCy NER

Text Extraction

Regex Patterns

Reference Card: Python re Module

Code Snippet: Regex in the re Module

Regex Across NLP Tools

LIVE DEMO

Text Representation

Bag of Words

Reference Card: CountVectorizer

Code Snippet: Bag of Words

TF-IDF

Reference Card: TfidfVectorizer

Code Snippet: TF-IDF

N-grams

Reference Card: N-grams

Code Snippet: N-grams

Word Vectors

Code Snippet: Word Vectors

Document Similarity

Cosine Similarity

Reference Card: Document Similarity

Code Snippet: Document Similarity

Specialized Tools

Challenges

Pipelines

NLTK Pipeline

Code Snippet: NLTK Pipeline

spaCy Pipeline

Code Snippet: spaCy Pipeline

Reference Card: spaCy Pipeline

Comparing the Approaches

LIVE DEMO

Reference Card: Python `re` Module

Code Snippet: Regex in the `re` Module

Reference Card: `CountVectorizer`

Reference Card: `TfidfVectorizer`
